ICON 22-23 Toyota Tundra 2-3.25in Stage 5 3.0 Suspension System - Tubular

ICON 22-23 Toyota Tundra 2-3.25in Stage 5 3.0 Suspension System - Tubular

Regular price $10,229.65 USD
Regular price Sale price $10,229.65 USD
Sale Sold out
Shipping calculated at checkout.

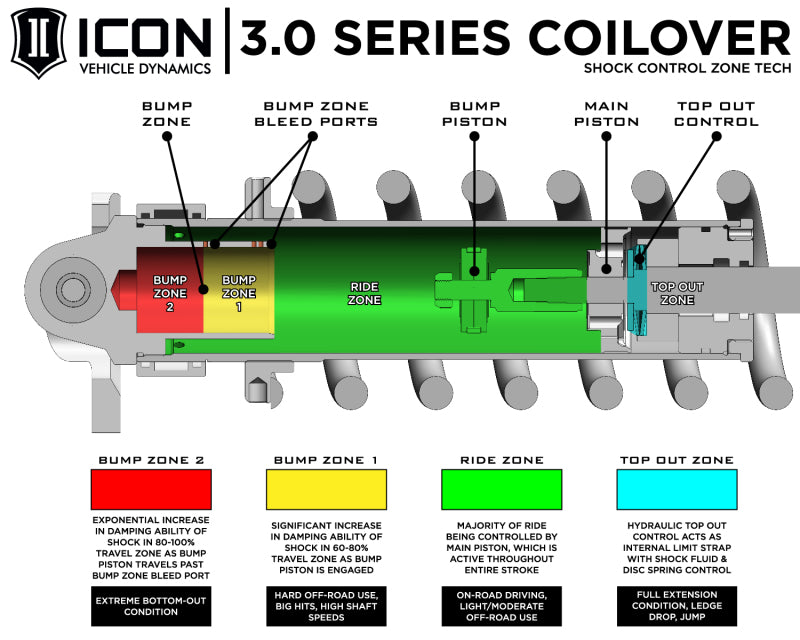

This Stage 5 system features the 2022-2023 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 2-3.25” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.

This Part Fits:

Year Make Model Submodel
2022-2023 Toyota Tundra 1794 Edition
2022-2023 Toyota Tundra Capstone
2022-2023 Toyota Tundra Limited
2022-2023 Toyota Tundra Platinum
2022-2023 Toyota Tundra SR
2022-2023 Toyota Tundra SR5
2022-2023 Toyota Tundra TRD Pro
View full details
