Silver's NEOMAX Coilovers Corvette 1997-2013 C5 & C6
SKU: SC2006
Silver’s NEOMAX Coilover Kit for Chevrolet Corvette C5/C6 1997-2013 Features:
APO Military Folks Contact Us for how we deal with getting your equipment to you.
We are the largest and original Silver's Corvette Distributor. Final Product Testing was done here and our in-house Z06 is on Kit #0001.
- Only Select Standard Drop Kit if you have a C6 that needs to be at factory ride height.
- Standard street spring specs are a good choice for stock or lightly modified cars. Cars with H/C/I Setups and up should be selecting the 10k rear at a minimum due to their increase torque FTLBS through the suspension.
- 12k Front / 10k Rear is the most popular all-around setup that does everything well. 12k front spring can be upgraded to 14k if you put an iron block in or want to go drifting…
- If you have more question on spring rate selection, call, message or email us today.
• Mono-tube shock design, Increases shock oil capacity as well as displacement over twin tube designs for maximum performance.
• Adjustable T6 6061 front camber plates on all McPherson style applications.
• 24 levels of dampening adjustability combined with our high grade shock oil, not only do you feel the click in your fingers, you feel every dampening adjustment in the driver’s seat..
• High strength JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel 52mm diameter seamless shock tube.
• 44mm linear characteristic internal piston provides maximum dampening response for ultimate performance while simultaneously giving a comfortable ride.
• High viscosity IP F.A. 5W damper oil ensures the best efficiency of shock-absorption and dampening control.
• Height adjustability is provided by the lower bracket which prevents the need to adjust the spring perch or preload, offering the maximum possible travel.
• Cold-bent springs made from high strength SAE9254 steel which keeps stable elastic modulus.
• Powder coated steel lower brackets matching all factory brake line & ABS wire tabs, for ease of installation.
• Anodized T6 6061 aluminum lower mounts for multilink suspension systems to lower un-sprung weight.
• 5 Year limited manufacturer’s warranty.
NOTE: Remote Rear Dampening Adjusters Included at no extra charge. This will allow you to adjust rear dampening from the trunk, a very handy feature.Default Spring Rates: Front 12K, Rear 8K - Excellent all-around street use with some track duty. Custom spring rates available for Drag, Drift & Auto-X. NO ADDITIONAL COSTS for custom builds with 2-3 week delivery times for any build. Most kits are received in 1-2 weeks on average, you will be kept informed as to build/shipping progress.
In Stock Availability means kits are made to order and shipped directly to you. Typically 2 weeks give or take a day or two. Occasionally not all kits on stocking orders are pre-sold and if your kit is in the US, 1 week delivery. If you have questions please call 203-644-0712 and speak with Brian directly.
How to setup preload: You will get our custom written install guide to assist you on installation emailed automatically after you checkout.
Silver's NEOMAX C5 & C6 Corvette Coilover FAQ
Answers for selecting, installing and setting up Silver's NEOMAX coilovers on 1997–2013 Chevrolet Corvette C5 and C6 models.
Which spring rates should I choose for my Corvette?
For most street-driven or lightly modified C5 and C6 Corvettes with occasional track use, we recommend the standard 12K front / 8K rear package. The 12K front / 10K rear setup is the most popular all-around step up for cars that see more track, drag or autocross use. Higher-power H/C/I combinations should use at least a 10K rear spring because of the added torque through the suspension. A 14K front can suit an iron-block swap or drifting. For big power cars, you will want Drag Setup in either standard drag or extreme +1000whp with the valving mod. Tell us your power level, tire, intended use and preferred ride quality if you want help choosing.
What setup works for big power, sticky tires or drag racing?
For high-power Corvettes on sticky tires, slicks or drag radials, choose a dedicated drag setup. Standard drag and extreme drag packages are available. The extreme configuration for 1,000+ wheel-horsepower builds uses a valving modification. Contact FI Performance before ordering so the spring rates and valving match the car.
Do I need to upgrade sway bars at the same time?
Not necessarily. Install and drive the coilovers first. The NEOMAX shocks are digressively valved and can make the car feel more controlled without immediately adding sway bars. Evaluate the car after alignment and damping adjustment, then decide whether your use calls for sway-bar changes.
Can I keep factory ride height on a C6?
Yes. Select the Standard Drop option only when a C6 needs to remain at factory ride height. The lower-bracket height adjustment changes ride height without using the spring perch, helping preserve preload and available suspension travel.
Does the kit include remote rear damping adjusters?
Yes. Remote rear damping adjusters are included at no extra charge. They let you adjust rear damping from the trunk. Installation requires one small 1/4-inch hole for the adjuster routing; follow the supplied installation guide and verify the location before drilling.
Will these work with factory electronic suspension or Magnetic Ride Control?
The coilovers replace the factory suspension. On cars equipped with electronic suspension, use an appropriate resistor plug or suspension-delete solution to prevent a warning light. Confirm the correct solution for your exact year, trim and electronics before installation.
Why convert a C5 or C6 from the transverse leaf spring to coilovers?
Replacing the factory transverse leaf spring with a complete coilover system removes the suspension cross-talk associated with the original C5/C6 layout and gives you independent ride-height and damping adjustment. It is a full suspension conversion, not simply a shock replacement.
How many damping adjustments do Silver's NEOMAX coilovers have?
Silver's NEOMAX coilovers provide 24 levels of damping adjustment. Start near the middle of the range, make small matching changes side to side, and test the car on familiar roads before making another change. Have the car professionally aligned after final ride-height adjustment.

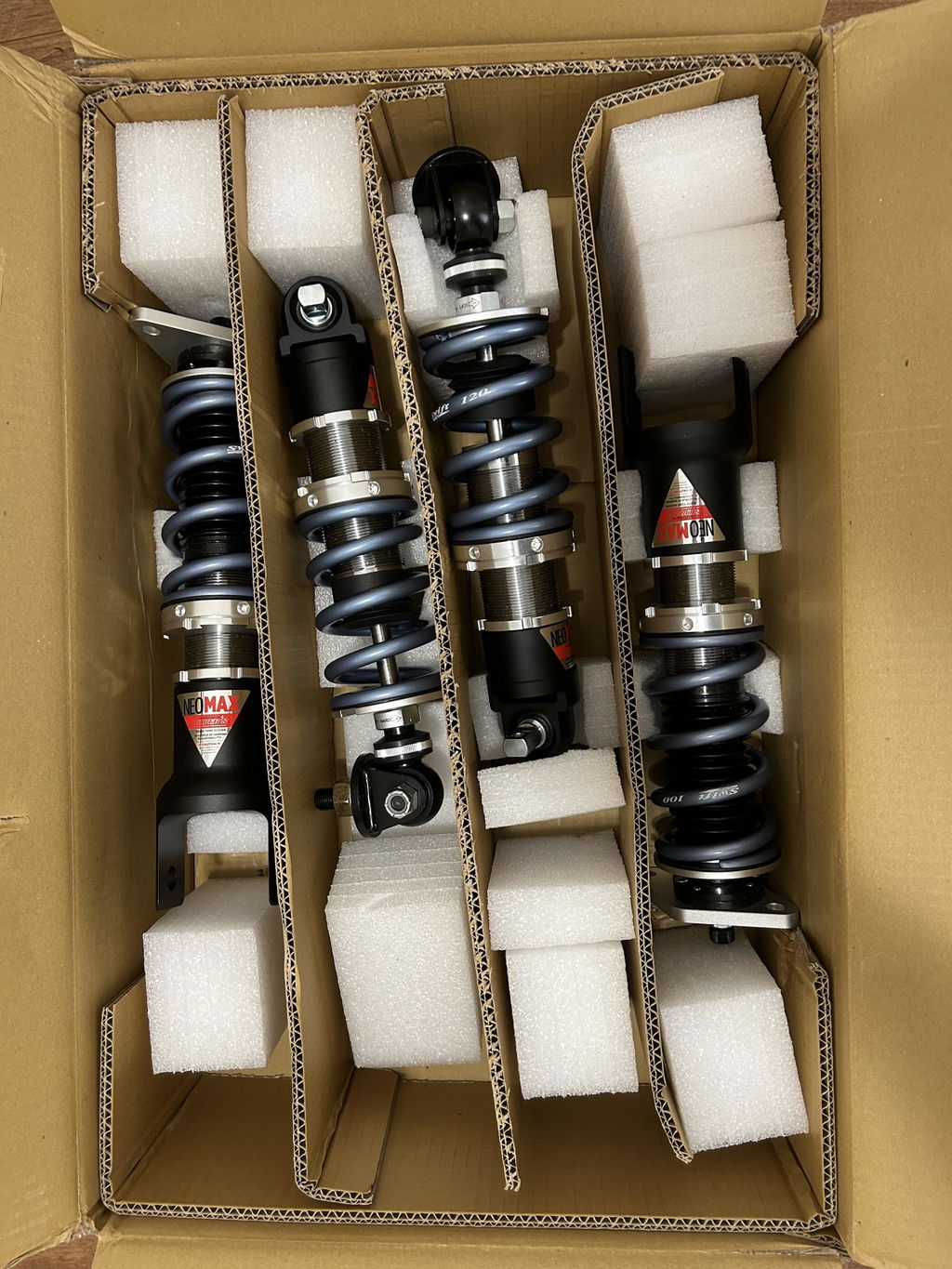

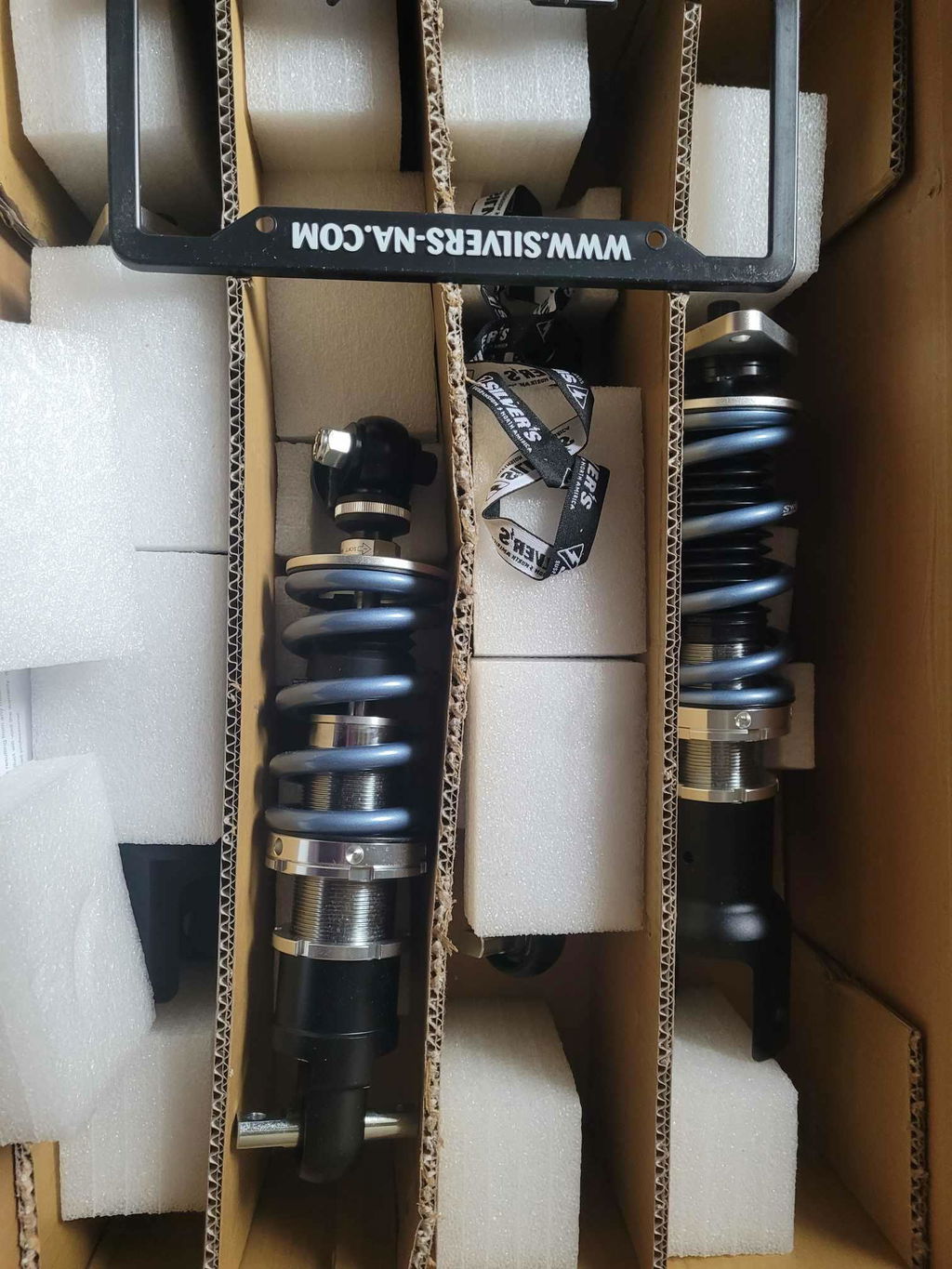

What is included with the Corvette coilover kit?
The kit includes the coilovers, vehicle-specific mounting hardware and remote rear damping adjusters. The lower brackets retain factory brake-line and ABS-wire tabs for easier installation. Your FI Performance installation and preload guide is emailed automatically after checkout.
What is the warranty and what if I need a shock later?
Silver's NEOMAX coilovers carry a 5-year limited manufacturer's warranty on your hard parts/mounts and 2 years on shock cartidges. In many approved warranty cases, Silver's replaces the affected component as long as we can see what the problem is. An example of photo proof would be in the event of a leaking cartidge, which is very rare. Replacement shock bodies are available individually after the warranty period.
Are custom spring rates available, and how long does a kit take to ship?
Custom spring-rate builds are available for drag racing, drifting and autocross without an additional custom-build charge. Most kits are made to order and ship directly in about 1–2 weeks; custom builds typically take 2–3 weeks. A kit already available in the United States may arrive in about one week. We will keep you informed of build and shipping progress.
Do I have to drill anything?
Yes, put your big boy/girl pants on, it's just a 1/4" hole for the remote rear adjuster. Don't worry, you won't be drilling through or around anything vital like wiring or fuel lines etc...
What about people telling me to corner balance the car to select spring rates?
Yes, you can go through all the motions of putting time in and figuring out what spring rates to use on your own. Or, you can simply tell us what you plan on doing with the car, what kind of tires you are running (drag applications) and what kind of power you are making and we can suggest something appropriate based on not only in-house testing (we did a lot) as well as dozens of customer feedback post their installations.
Is everything designed and made in-house?
Yes, all Silver's, they do not rely on other part suppliers.
I hear these have Remote Rear Dampening Adjusters, how do they work?
Can't I just upgrade the shocks and call it a day?
Without getting rid of the transverse leaf in the C5/6 suspension setup, you will always have "suspension cross-talk". Converting to a full coilover suspension will eliminate that and allow better control.
