Holley EFI Fuel Tank Modules - 255 LPH - Tri-Five Chevrolet Vehicles

Holley EFI Fuel Tank Modules - 255 LPH - Tri-Five Chevrolet Vehicles

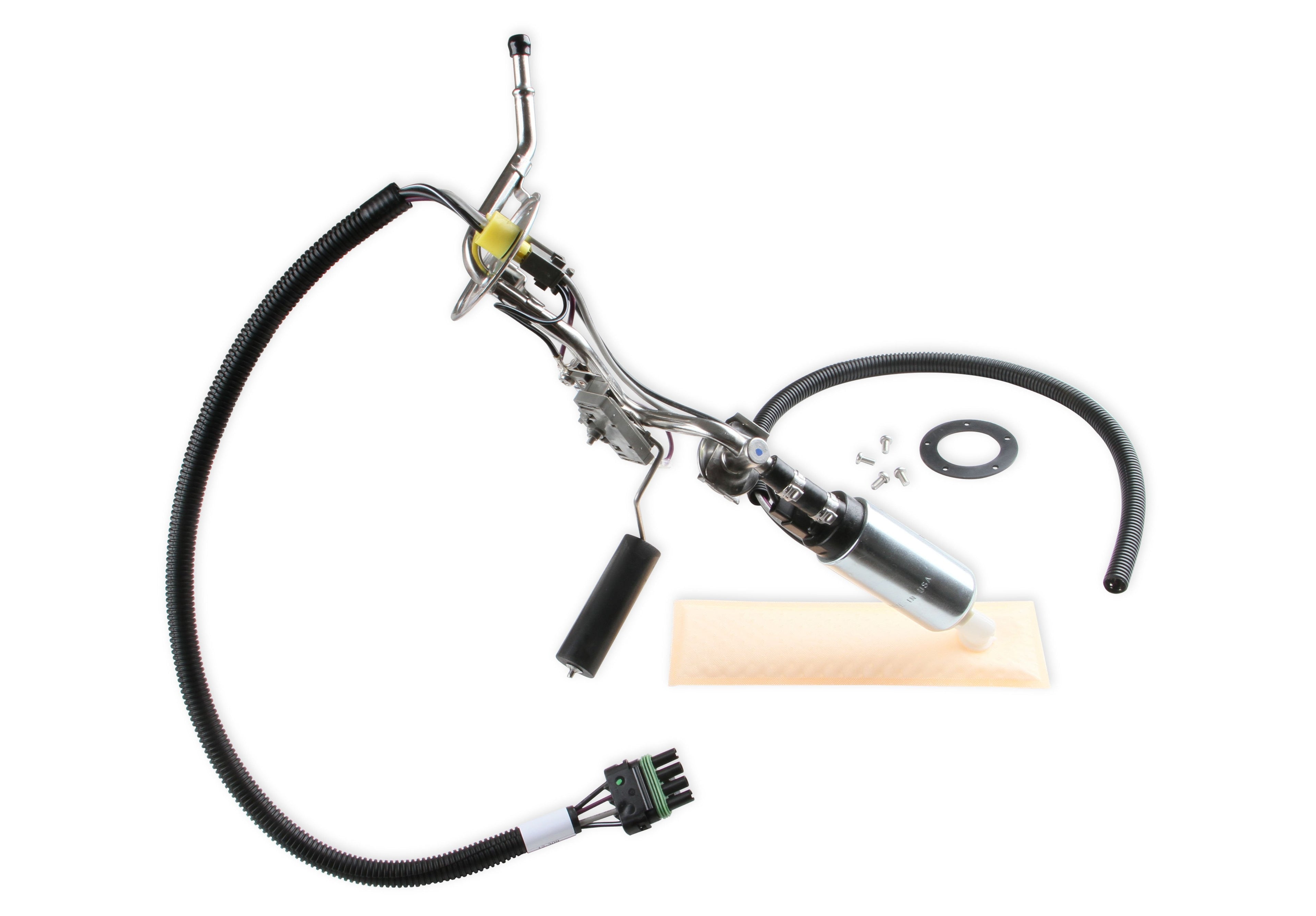

In-tank fuel pump module for 1955-1957 Chevrolet Coupe & Sedan. Supports Up To 550 Horsepower.

Overview

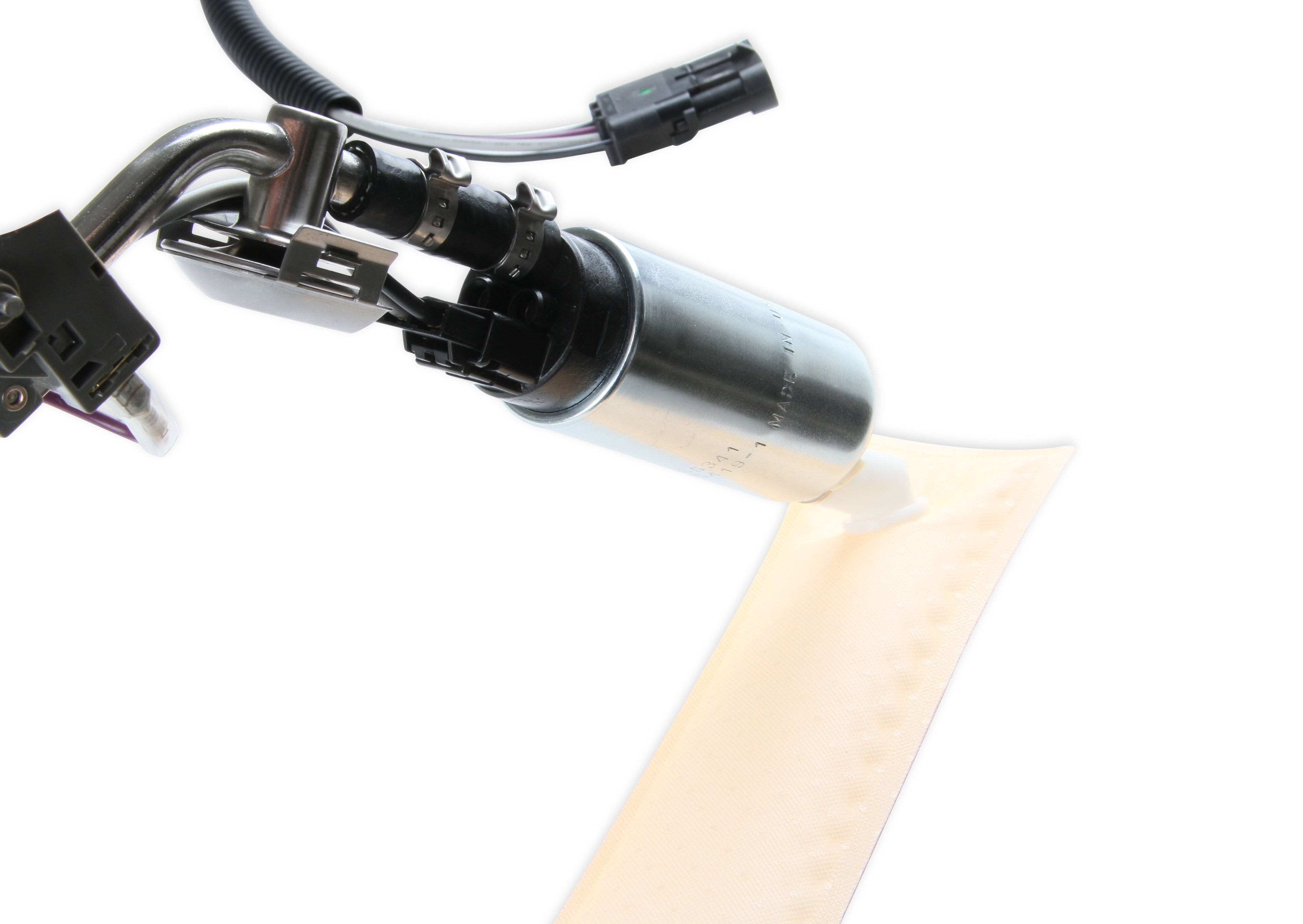

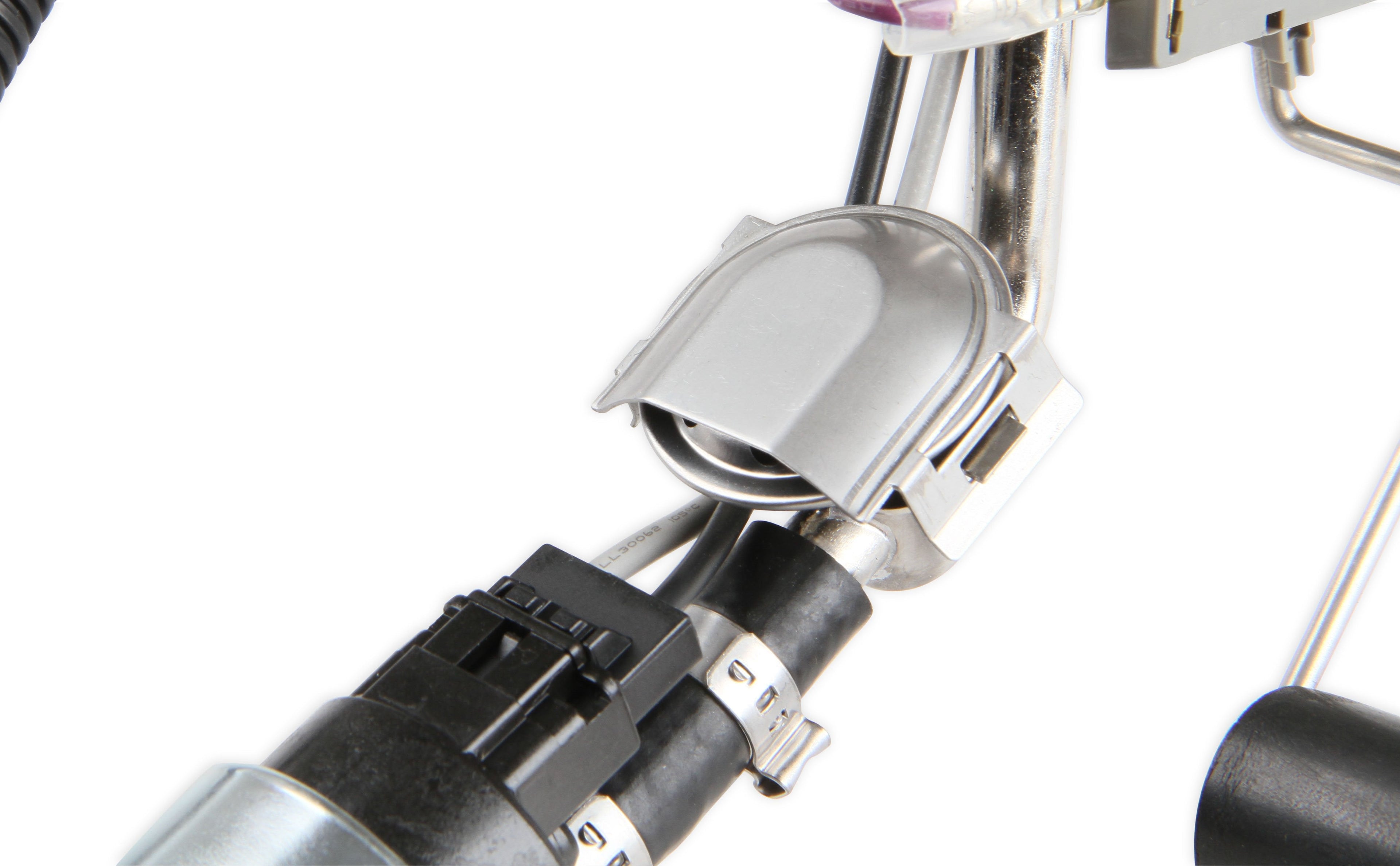

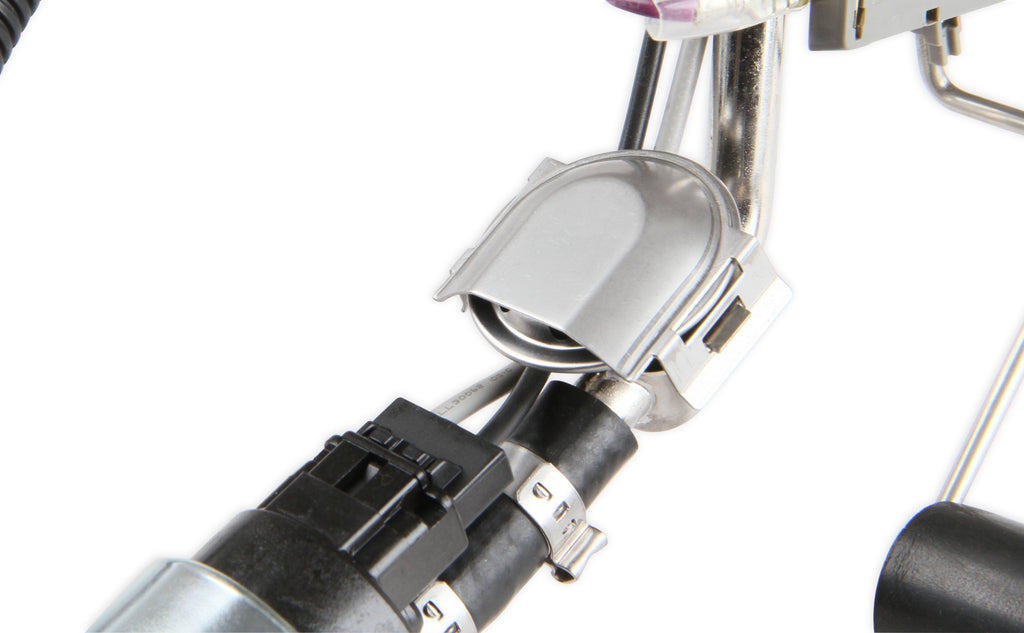

This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates

The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1955-1957 Chevrolet Coupe & Sedan Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

Features:

• Supports up to 550 horsepower (HP)
• Flows 255 liters per hour (LPH)
• Internally regulated to 58 PSI

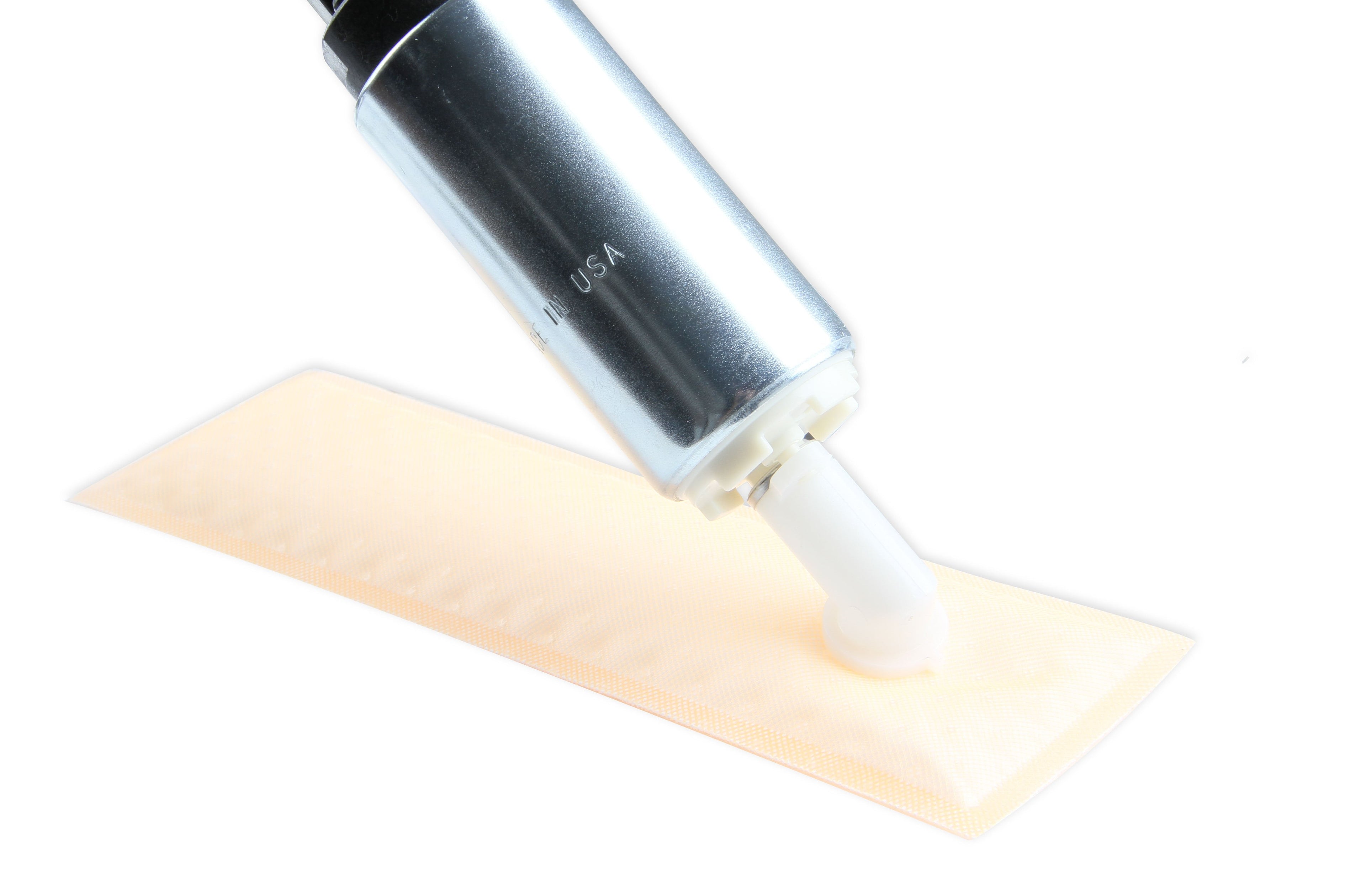

• Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues

Application: 1955-1957 Chevrolet 150, 210 and Bel Air Coupe/Sedan
Average Flow Rating: 255 LPH
Connector Gender: Male
Free Flow LPH: 255
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel Sending Unit Ohms: 0-30 Ohms
Fuel Tank Pressure Sensor Included: No
Fuel Type: Gasoline
Gasket Or Seal Included: Yes
Grade Type: Performance
In Tank or External: In Tank
Inlet Diameter: 5/16 in
Inlet Quantity: One
Lock Ring Included: Yes
Material: Steel and Plastic
Maximum Pressure: 58 PSI
Negative Ground: Yes
Outlet Outside Diameter: 3/8 in
Outlet Quantity: One
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 0 ohms
Resistance Ohms Full: 30 ohms
Strainer Included: Yes
Vent Size: N/A
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Harness Included: Yes

Links
Instruction Sheet

Note: The pump is not compatible for use with PWM (Pulse-width Modulation) Not compatible with wagon or delivery models.
