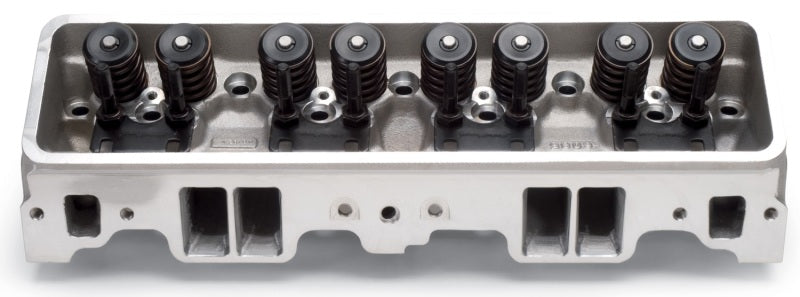

Edelbrock Single Perf SBC C-Bolt Head Comp

Edelbrock Single Perf SBC C-Bolt Head Comp

Regular price $1,028.50 USD
Regular price Sale price $1,028.50 USD
Sale Sold out
Shipping calculated at checkout.
The Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1987-95, 73° angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket. The Corvette centerbolt cylinder head is designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1986-91 (straight) 90° angle on all bolts. Spark plugs are angled like stock O.E. heads. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Edelbrock pushrods #9632 are recommended. Requires hardened pushrods. Pedestal mount rockers. When using hot air choke Q-Jet carbs, choke kit #1932 is required. Intended for use on small-bore (3.736" - 4.00") 265, 283, 305 & 307 engines. Deck thickness: 9/16", rocker stud diameter: 3/8", pushrod diameter: 5/16" (width of slot in guide plate).

This Part Fits:

Year Make Model Submodel
1991-1993 Buick Commercial Chassis Base
1992-1993 Buick Roadmaster Base
1991-1993 Buick Roadmaster Estate Wagon
1992-1993 Buick Roadmaster Limited
1994 Chevrolet Blazer Base
1992-1993 Chevrolet Blazer Cheyenne
1987 Chevrolet Blazer Custom Deluxe
1988-1991 Chevrolet Blazer Scottsdale
1987-1994 Chevrolet Blazer Silverado
1994 Chevrolet Blazer Silverado Sport
1994-1995 Chevrolet C1500 Base
1988-1995 Chevrolet C1500 Cheyenne
1988-1992 Chevrolet C1500 Scottsdale
1988-1995 Chevrolet C1500 Silverado
1990-1995 Chevrolet C1500 WT
1992-1995 Chevrolet C1500 Suburban Base
1995 Chevrolet C1500 Suburban LS
1995 Chevrolet C1500 Suburban LT
1992-1994 Chevrolet C1500 Suburban Silverado
1994-1995 Chevrolet C2500 Base
1988-1995 Chevrolet C2500 Cheyenne
1988-1992 Chevrolet C2500 Scottsdale
1988-1995 Chevrolet C2500 Silverado
1994-1995 Chevrolet C2500 WT
1992-1995 Chevrolet C2500 Suburban Base
1995 Chevrolet C2500 Suburban LS
1995 Chevrolet C2500 Suburban LT
1992-1994 Chevrolet C2500 Suburban Silverado
1994-1995 Chevrolet C3500 Base
1988-1995 Chevrolet C3500 Cheyenne
1988-1992 Chevrolet C3500 Scottsdale
1988-1995 Chevrolet C3500 Silverado
1988 Chevrolet Camaro Base
1987-1990 Chevrolet Camaro Iroc-Z
1987 Chevrolet Camaro LT
1989-1992 Chevrolet Camaro RS
1992 Chevrolet Camaro RS Heritage Edition
1987 Chevrolet Camaro Sport
1987,1991-1992 Chevrolet Camaro Z28
1992 Chevrolet Camaro Z28 Heritage Edition
1987-1992 Chevrolet Caprice Base
1987-1993 Chevrolet Caprice Classic
1987-1990 Chevrolet Caprice Classic Brougham
1993 Chevrolet Caprice Classic LS
1987-1990 Chevrolet Caprice Classic LS Brougham
1991-1993 Chevrolet Caprice Classic LTZ
1991-1993 Chevrolet Commercial Chassis Base
1988 Chevrolet Corvette 35th Anniversary Edition
1987-1991 Chevrolet Corvette Base
1987 Chevrolet El Camino Base
1987 Chevrolet El Camino SS
1987-1995 Chevrolet G10 Beauville
1987 Chevrolet G10 Bonaventure
1987-1995 Chevrolet G10 Chevy Van
1987-1995 Chevrolet G10 Sportvan
1987-1995 Chevrolet G20 Beauville
1987-1995 Chevrolet G20 Chevy Van
1987-1995 Chevrolet G20 Sportvan
1987-1995 Chevrolet G30 Beauville
1987-1995 Chevrolet G30 Chevy Van
1987-1995 Chevrolet G30 Hi-Cube
1987-1995 Chevrolet G30 Sportvan
1994-1995 Chevrolet K1500 Base
1988-1995 Chevrolet K1500 Cheyenne
1988-1992 Chevrolet K1500 Scottsdale
1988-1995 Chevrolet K1500 Silverado
1991 Chevrolet K1500 Sport
1990-1995 Chevrolet K1500 WT
1992-1995 Chevrolet K1500 Suburban Base
1995 Chevrolet K1500 Suburban LS
1995 Chevrolet K1500 Suburban LT
1992-1994 Chevrolet K1500 Suburban Silverado
1994-1995 Chevrolet K2500 Base
1988-1995 Chevrolet K2500 Cheyenne
1988-1992 Chevrolet K2500 Scottsdale
1988-1995 Chevrolet K2500 Silverado
1994-1995 Chevrolet K2500 WT
1992-1995 Chevrolet K2500 Suburban Base
1995 Chevrolet K2500 Suburban LS
1995 Chevrolet K2500 Suburban LT
1992-1994 Chevrolet K2500 Suburban Silverado
1994-1995 Chevrolet K3500 Base
1988-1995 Chevrolet K3500 Cheyenne
1988-1992 Chevrolet K3500 Scottsdale
1988-1995 Chevrolet K3500 Silverado
1987-1988 Chevrolet Monte Carlo Base
1987-1988 Chevrolet Monte Carlo LS
1987-1988 Chevrolet Monte Carlo SS
1987-1989 Chevrolet P20 Base
1987-1989 Chevrolet P20 Step-Van
1987-1995 Chevrolet P30 Base
1987-1990 Chevrolet P30 Step-Van
1987 Chevrolet R10 Custom Deluxe
1987 Chevrolet R10 Scottsdale
1987 Chevrolet R10 Silverado
1987 Chevrolet R10 Suburban Custom Deluxe
1987-1988 Chevrolet R10 Suburban Scottsdale
1987-1988 Chevrolet R10 Suburban Silverado
1989-1991 Chevrolet R1500 Suburban Scottsdale
1989-1991 Chevrolet R1500 Suburban Silverado
1988 Chevrolet R20 Cheyenne
1987-1988 Chevrolet R20 Custom Deluxe
1987-1988 Chevrolet R20 Scottsdale
1987-1988 Chevrolet R20 Silverado
1987 Chevrolet R20 Suburban Custom Deluxe
1987-1988 Chevrolet R20 Suburban Scottsdale
1987-1988 Chevrolet R20 Suburban Silverado
1989 Chevrolet R2500 Silverado
1989-1991 Chevrolet R2500 Suburban Scottsdale
1989-1991 Chevrolet R2500 Suburban Silverado
1988 Chevrolet R30 Cheyenne
1987-1988 Chevrolet R30 Custom Deluxe
1987-1988 Chevrolet R30 Scottsdale
1987-1988 Chevrolet R30 Silverado
1989-1991 Chevrolet R3500 Cheyenne
1989-1990 Chevrolet R3500 Scottsdale
1989-1991 Chevrolet R3500 Silverado
1995 Chevrolet Tahoe Base
1995 Chevrolet Tahoe LS
1995 Chevrolet Tahoe LT
1987 Chevrolet V10 Custom Deluxe
1987 Chevrolet V10 Scottsdale
1987 Chevrolet V10 Silverado
1987 Chevrolet V10 Suburban Custom Deluxe
1987-1988 Chevrolet V10 Suburban Scottsdale
1987-1988 Chevrolet V10 Suburban Silverado
1989-1991 Chevrolet V1500 Suburban Scottsdale
1989-1991 Chevrolet V1500 Suburban Silverado
1987 Chevrolet V20 Custom Deluxe
1987 Chevrolet V20 Scottsdale
1987 Chevrolet V20 Silverado
1987 Chevrolet V20 Suburban Custom Deluxe
1987-1988 Chevrolet V20 Suburban Scottsdale
1987-1988 Chevrolet V20 Suburban Silverado
1989-1991 Chevrolet V2500 Suburban Scottsdale
1989-1991 Chevrolet V2500 Suburban Silverado
1988 Chevrolet V30 Cheyenne
1987-1988 Chevrolet V30 Custom Deluxe
1987-1988 Chevrolet V30 Scottsdale
1987-1988 Chevrolet V30 Silverado
1989-1991 Chevrolet V3500 Cheyenne
1989-1990 Chevrolet V3500 Scottsdale
1989-1991 Chevrolet V3500 Silverado
1988-1993 GMC C1500 Sierra
1994-1995 GMC C1500 Sierra SL
1988-1995 GMC C1500 Sierra SLE
1994-1995 GMC C1500 Sierra SLT
1988-1993 GMC C1500 Sierra SLX
1994-1995 GMC C1500 Sierra Special
1992-1995 GMC C1500 Suburban Base
1992-1995 GMC C1500 Suburban SLE
1995 GMC C1500 Suburban SLT
1988-1993 GMC C2500 Sierra
1994-1995 GMC C2500 Sierra SL
1988-1995 GMC C2500 Sierra SLE
1994-1995 GMC C2500 Sierra SLT
1988-1993 GMC C2500 Sierra SLX
1992-1995 GMC C2500 Suburban Base
1992-1995 GMC C2500 Suburban SLE
1995 GMC C2500 Suburban SLT
1988-1993 GMC C3500 Sierra
1994-1995 GMC C3500 Sierra SL
1988-1995 GMC C3500 Sierra SLE
1994-1995 GMC C3500 Sierra SLT
1988-1993 GMC C3500 Sierra SLX
1987 GMC Caballero Base
1987 GMC Caballero Diablo
1987-1995 GMC G1500 Rally
1987-1995 GMC G1500 Rally STX
1987-1995 GMC G1500 Vandura
1987-1995 GMC G2500 Rally
1987-1995 GMC G2500 Rally STX
1987-1995 GMC G2500 Vandura
1987-1995 GMC G3500 Magnavan
1987-1995 GMC G3500 Rally
1987-1995 GMC G3500 Rally Camper Special
1987-1988 GMC G3500 Rally Custom
1987-1995 GMC G3500 Rally STX
1987-1995 GMC G3500 Vandura
1987-1995 GMC G3500 Vandura Special
1987-1991 GMC Jimmy Base
1987-1990 GMC Jimmy Sierra Classic
1988-1993 GMC K1500 Sierra
1994-1995 GMC K1500 Sierra SL
1988-1995 GMC K1500 Sierra SLE
1995 GMC K1500 Sierra SLS
1994-1995 GMC K1500 Sierra SLT
1988-1993 GMC K1500 Sierra SLX
1994-1995 GMC K1500 Sierra Special
1993 GMC K1500 Sierra Sport
1992-1995 GMC K1500 Suburban Base
1992-1995 GMC K1500 Suburban SLE
1995 GMC K1500 Suburban SLT
1988-1993 GMC K2500 Sierra
1994-1995 GMC K2500 Sierra SL
1988-1995 GMC K2500 Sierra SLE
1994-1995 GMC K2500 Sierra SLT
1988-1993 GMC K2500 Sierra SLX
1992-1995 GMC K2500 Suburban Base
1992-1995 GMC K2500 Suburban SLE
