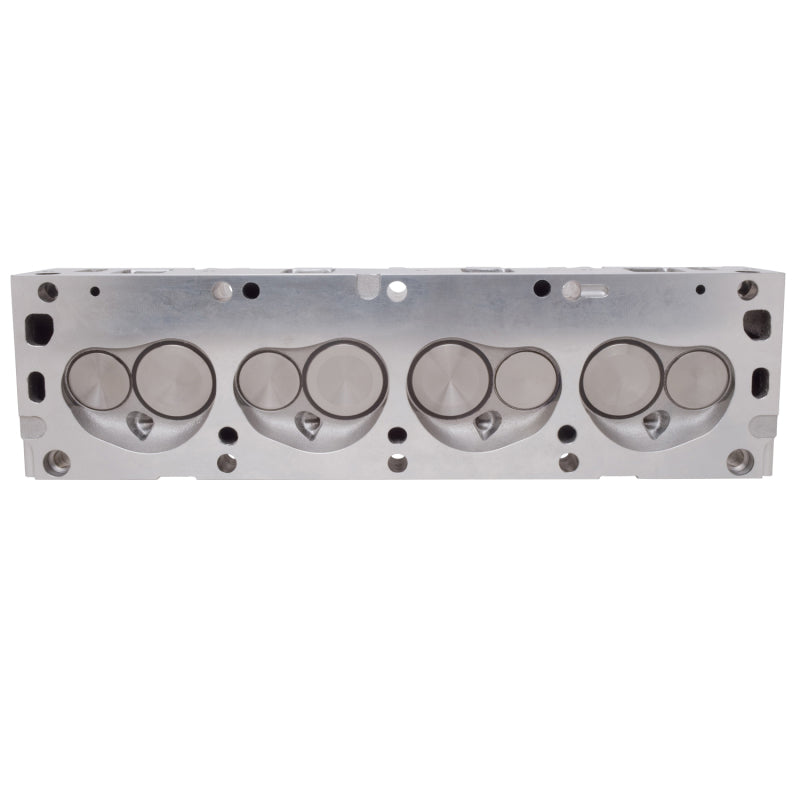

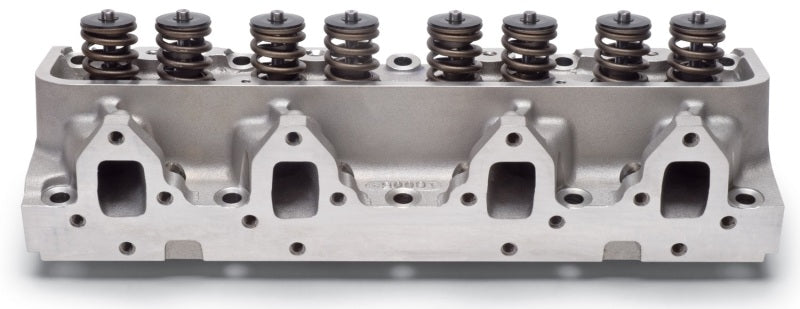

Edelbrock Single Ford FE 72cc 390/428 Head Comp

Edelbrock Single Ford FE 72cc 390/428 Head Comp

Regular price $936.50 USD
Regular price Sale price $936.50 USD
Sale Sold out
Shipping calculated at checkout.
Cylinder Head Specifications: Combustion chamber volume: 72cc / 76cc; Intake runner volume: 170cc; Exhaust runner volume: 125cc; Intake valve diameter: 2.09"; Exhaust valve diameter: 1.66"; Valve stem diameter: 3/8"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .600"; Pushrod diameter: 3/8"; Valve angle: 13Ā°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. 76cc heads have vertical bolt pattern only, 390 GT exhaust will not fit. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8". IMPORTANT NOTES: Direct bolt-on heads for 1961-76 390-427-428 Fords. 428 Cobra Jet-sized valves promote excellent flow for streetable power. #60089 can be machined to accept 2.19" intake and 1.73" exhaust valves. Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head. Intake and exhaust CC values are projected if using Edelbrock valves, and equivalent valve job and bowl blend. Edelbrock FE heads do not have the bolt pattern to accommodate the stock GT 390 exhaust manifolds. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Replacement valve part numbers are for sets of 8. Deck thickness, 5/8". #6009 rocker shaft stud kit recommended.

This Part Fits:

Year Make Model Submodel
1968 Ford Country Sedan Base
1968 Ford Country Squire Base
1968 Ford Custom Base
1968 Ford Custom 500 Base
1968-1970 Ford Fairlane 500
1968-1969 Ford Fairlane Base
1968 Ford Galaxie 500 Base
1968 Ford Galaxie 500 XL
1968 Ford GT40 Base
1969 Ford GT40 MK III
1968 Ford LTD Base
1968-1970 Ford Mustang Base
1970 Ford Mustang Grande
1970 Ford Mustang Mach 1
1968-1970 Ford Mustang Shelby GT-500
1968 Ford Mustang Shelby GT-500KR
1968 Ford Ranch Wagon Base
1968-1969 Ford Ranchero 500
1968-1969 Ford Ranchero Base
1968-1969 Ford Ranchero GT
1969 Ford Thunderbird Base
1968-1970 Ford Torino Base
1969 Ford Torino Cobra
1968-1970 Ford Torino GT
1970 Ford Torino Super Cobra Jet
1969 Mercury Comet Base
1968 Mercury Cougar Base
1968 Mercury Cougar XR-7
1969 Mercury Cyclone Base
1969 Mercury Cyclone CJ
1969 Mercury Cyclone Spoiler
1968-1969 Mercury Montego Base
1968-1969 Mercury Montego MX
