Cylinder Head Specifications: Combustion chamber volume: 118cc; Intake runner volume: 315cc; Exhaust runner volume: 110cc; Intake valve diameter: 2.19"; Exhaust valve diameter: 1.88"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.55"; Valve spring maximum lift: .700"; Rocker stud: 7/16"; Guideplate: Hardened steel; Pushrod diameter: 3/8"; Valve angle: 26°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. All Performer and Performer RPM Big-Block Chevy heads: Spark plug is closer to center of bore, will interfere with high-dome pistons for open chamber heads. Use pistons designed for our heads. Match with Edelbrock head gasket sets.

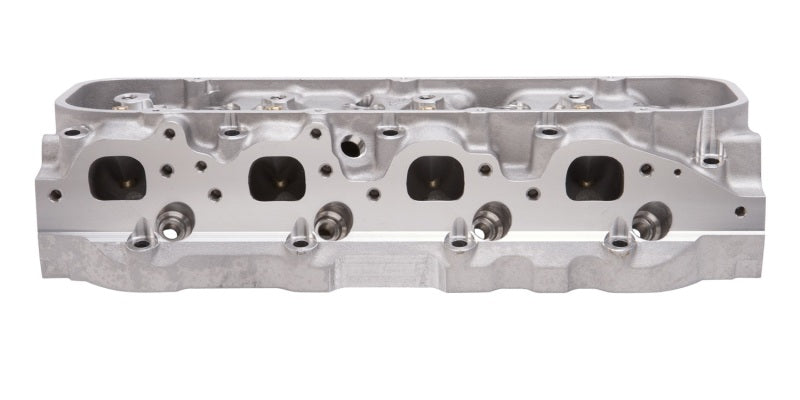

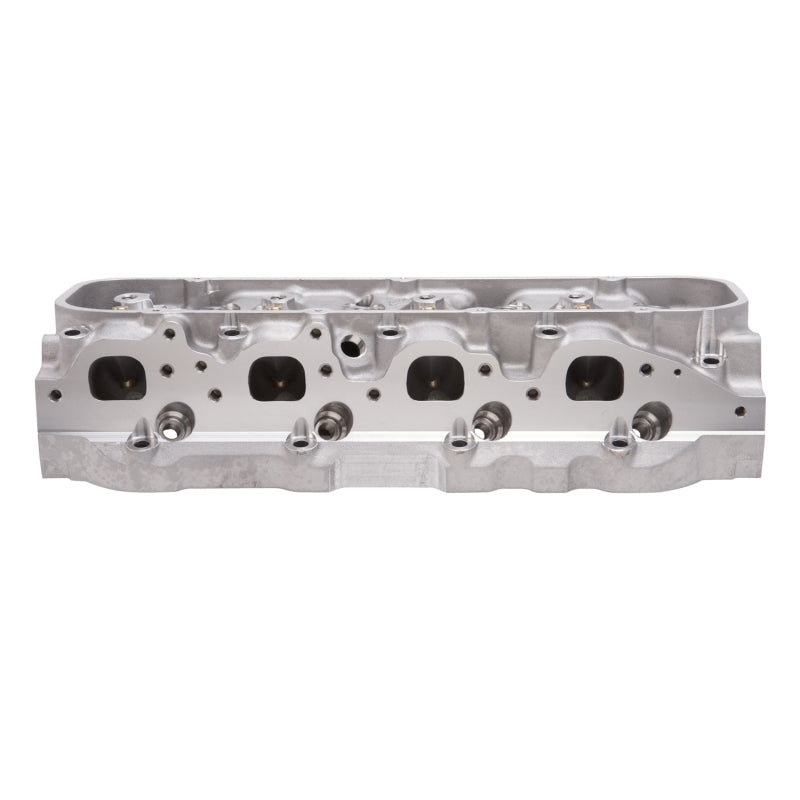

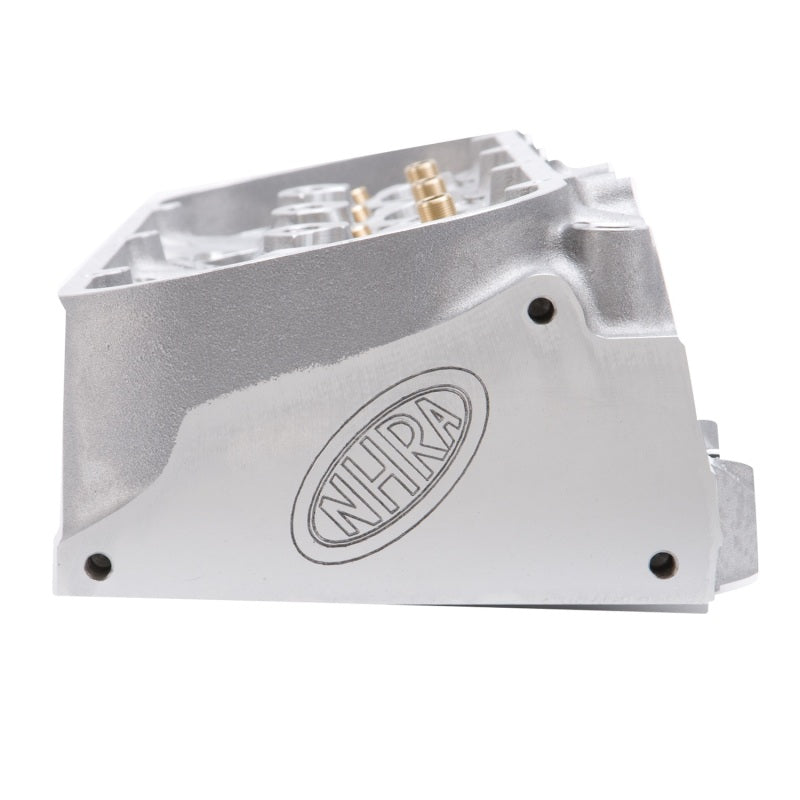

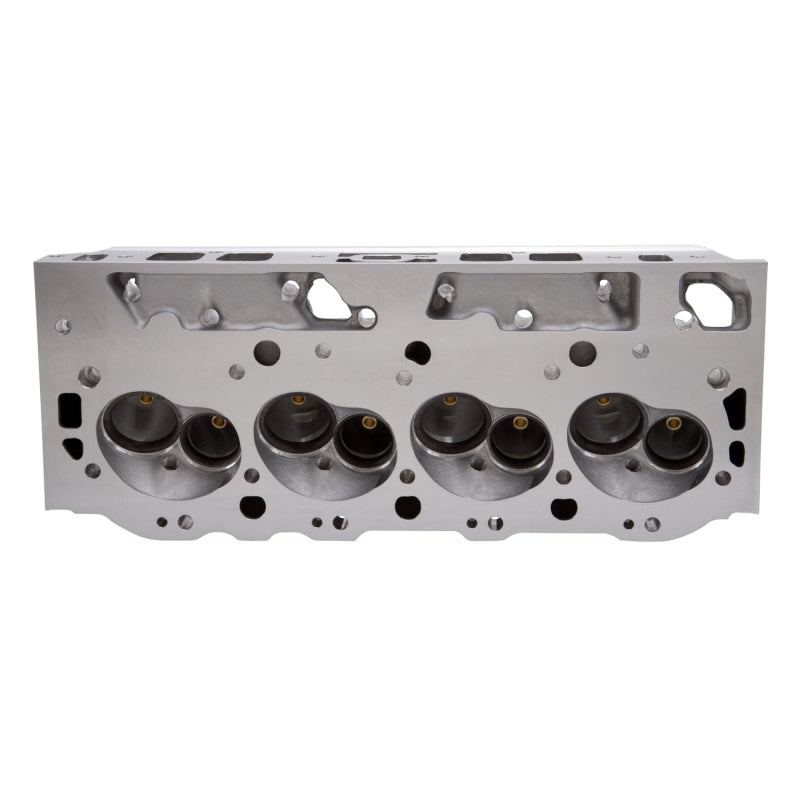

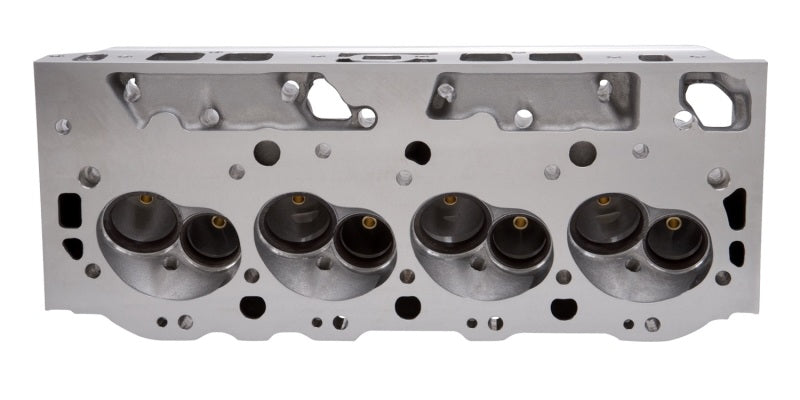

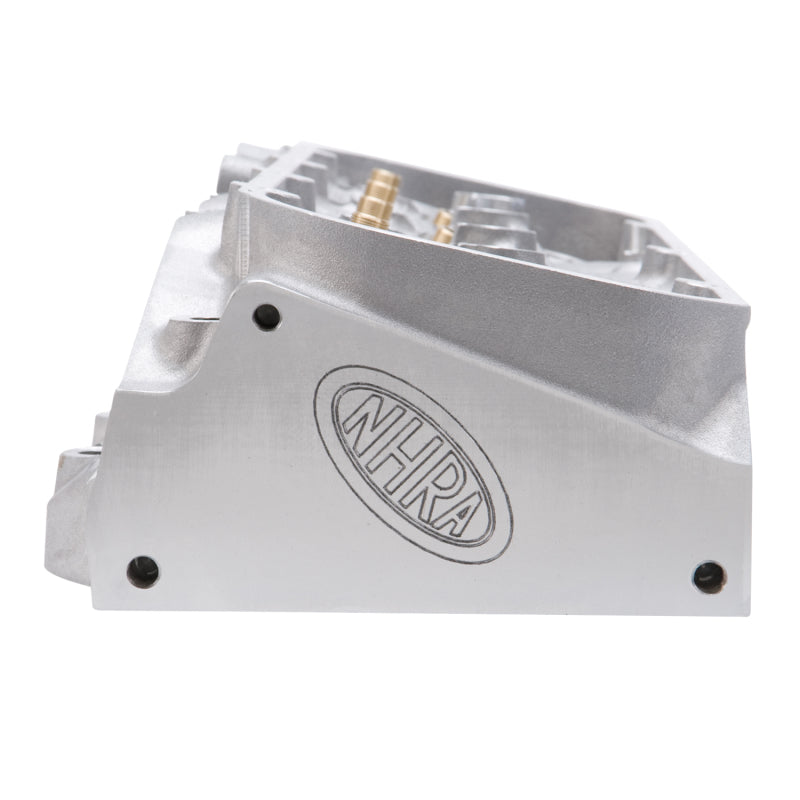

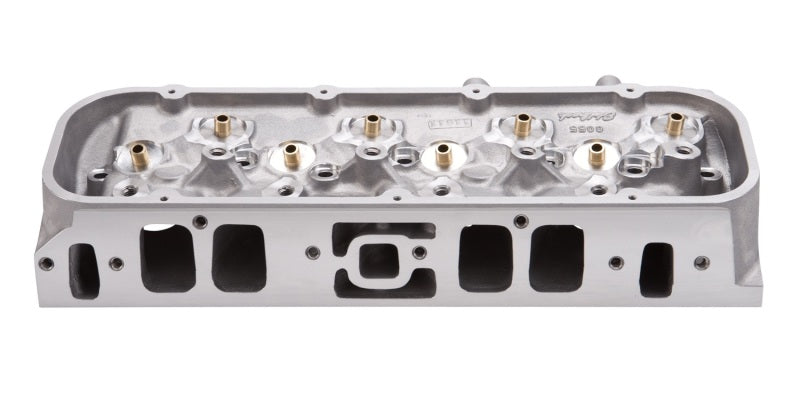

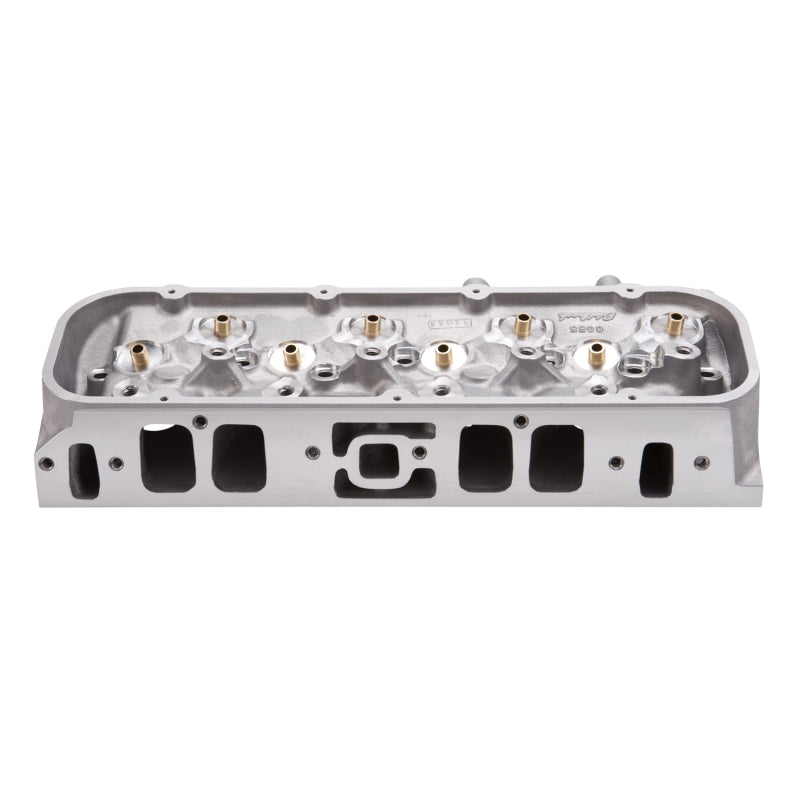

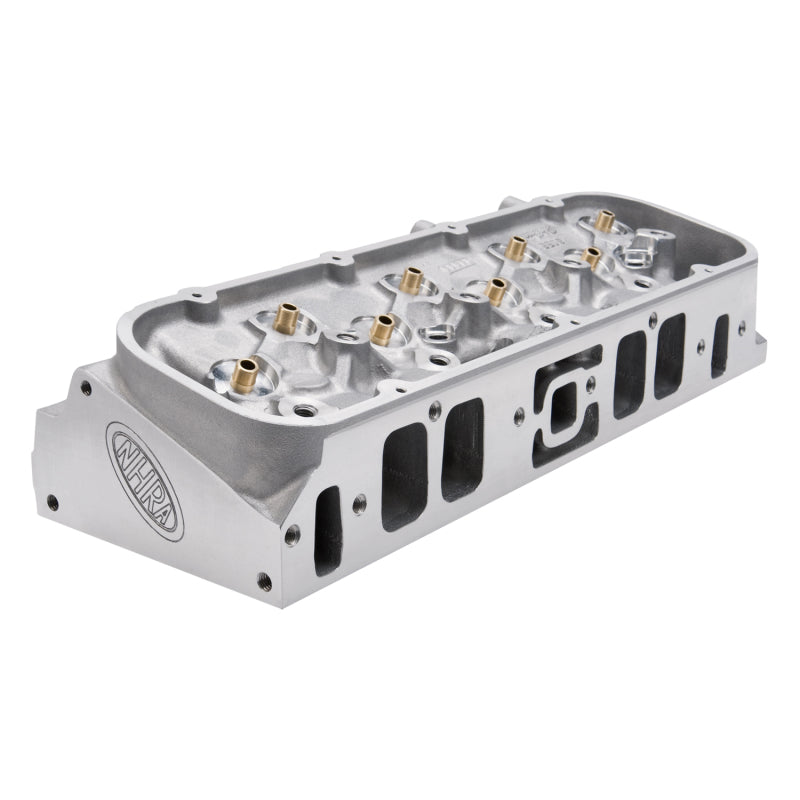

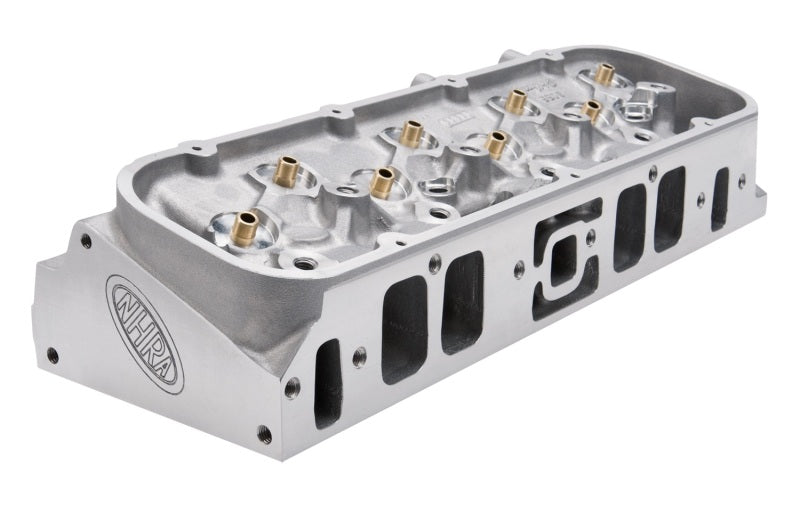

Edelbrock Cylinder Head Perf RPM BBC Rect Port NHRA Legal Bare
SKU: EDE60547
$782.50 USD
Shipping calculated at checkout.
Special Order Item Delivery times depend on manufacturer fulfillment and carrier performance. Expedited shipping reflects how the order is placed with the manufacturer and does not guarantee delivery dates. However, due to FI Performance’s industry relationships, we may be able to assist with expedited processing when possible. If timing is critical, please call us before ordering at (203) 644-0712.
