DeWitts Corvette C6 Cutdown Pro-Series Radiator and Fan Kit 32-4139125A

DeWitts Corvette C6 Cutdown Pro-Series Radiator and Fan Kit 32-4139125A

Regular price $1,498.99 USD
Regular price Sale price $1,498.99 USD
Sale Sold out
Shipping calculated at checkout.

DeWitts Pro-Series Radiator Modules CUTDOWN For Supercharged Corvette C6's:

  • All C6 Z06 models (Except 2012 model year with Z07 option)
  • All C6 with automatic transmission
  • All dry sump engine models (Grand Sport, Z06, ZR1)
  • Includes DeWitt's Cutdown Radiator & Fan Kit (Short)

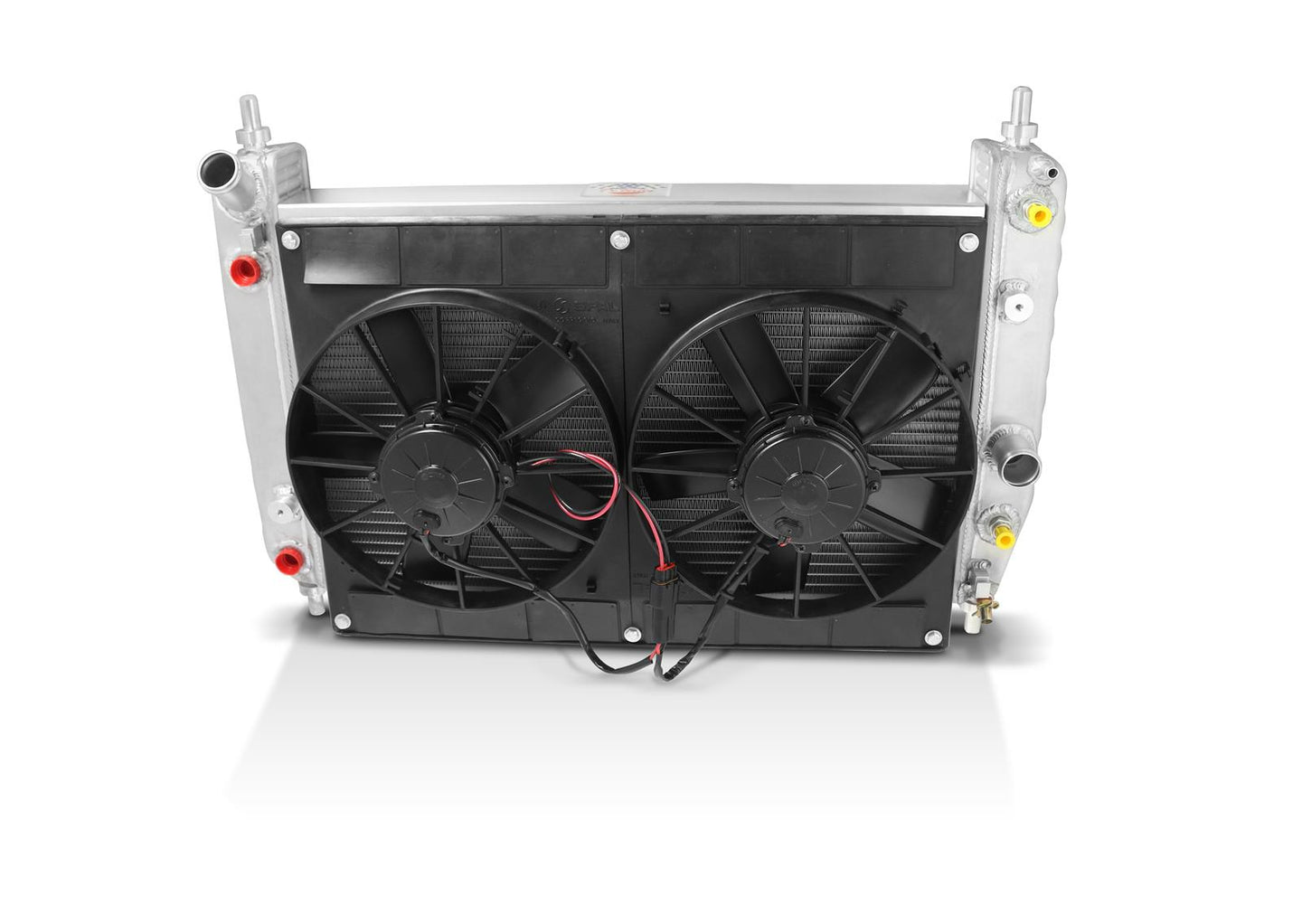

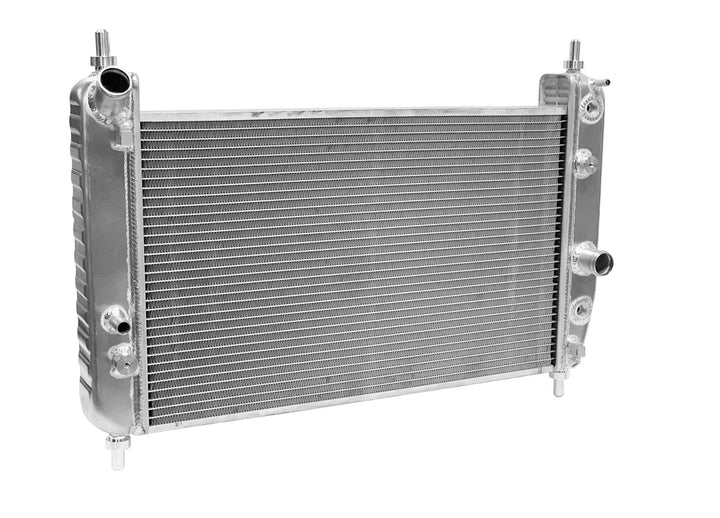

DeWitts Pro-Series direct-fit radiator modules install in the stock mounting position and use the factory connections without any modifications or adapters. Expertly assembled and then furnace-brazed, their epoxy-free cores feature two rows of 1.00 inch cooling tubes and a serpentine fin. The radiators' press-formed end tanks are manually TIG-welded by skilled craftsmen to provide the ultimate in strength and appearance. Included is an aluminum shroud with a Spal electric fan mounting in position, one wire harness, and a temperature switch; some models also have a built-in transmission cooler. DeWitts Pro-Series direct-fit radiator modules are available in crossflow and downflow styles, as well as a range of sizes for vehicle-specific applications.

Radiator Material:
Aluminum
Radiator Style:
Crossflow
Transmission Cooler:
Yes
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Overall Width (in.):
29.00 in.
Overall Height (in.):
15.00 in.
Overall Thickness (in.):
3.25
Row Quantity:
2
Radiator Finish:
Natural
Core Width (in.):
23.50 in.
Core Height (in.):
15.00 in.
Core Thickness (in.):
2.25 in.
Radiator Inlet Size:
1.250 in.
Radiator Outlet Size:
1.250 in.
Trans Cooler Adapter Fittings Included:
No
Tube Size:
1 in.
Fan Included:
Yes
Fan Quantity:
Dual
Fan Diameter (in.):
11.00 in.
Maximum Fan CFM:
2,780 cfm
Fan CFM Range:
2,700-2,799
Blade Material:
Plastic
Blade Color:
Black
Shroud Material:
Aluminum
Shroud Color:
Natural
Radiator Cap Included:
No
Quantity:
Sold individually.
Notes:
Electric fan has 26.0 amp rating.
