FDF RaceShop BMW E36 MEGA MANTIS ANGLE KIT

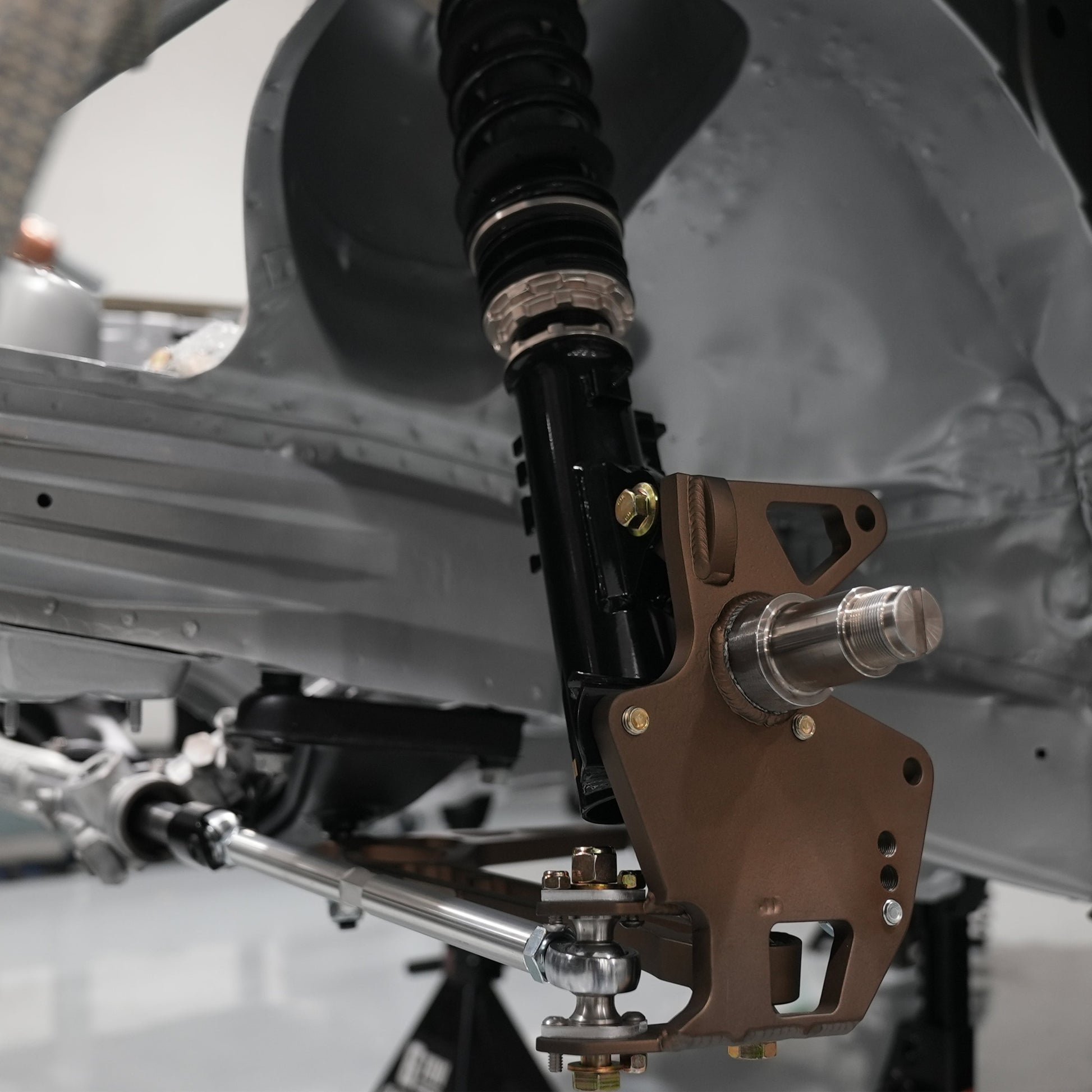

The BMW E36 Mega Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

• Adjustability: Our innovative lower control arm/lollipop design introduces on-car fine-tuning for caster, a unique feature not found in other kits.
• Strength: Crafted using the strongest alloy steels available, the Mega Mantis Kit is engineered to thrive under intense racing conditions
• Angle: 70 degrees depending on your steering rack setup
• Ackermann: Adjustable Ackermann
• Roll Center: Optimized handling by adding 40mm of roll center correction
• Bump Steer: Minimal bump steer in drift by perfecting tie-rod pickup location
• Caster: Displaced caster built into the knuckle for optimal alignment force
• Camber: Optimized camber ranging from -3 to -6
• Track Width: 50-75mm wider per side creating a stable and high clearance front end (Recommend front over fenders)
• Suspension Travel: Long travel range, full lock to full lock at any point throughout  suspension travel for increased grip
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable
• Durable & Reliable: Made from High strength alloy steel and Aluminum

Choose the options according to your preferences or send us an email if you need help deciding sales@fdfraceshop.com

Note: You Must Have Coilovers To Run This Kit

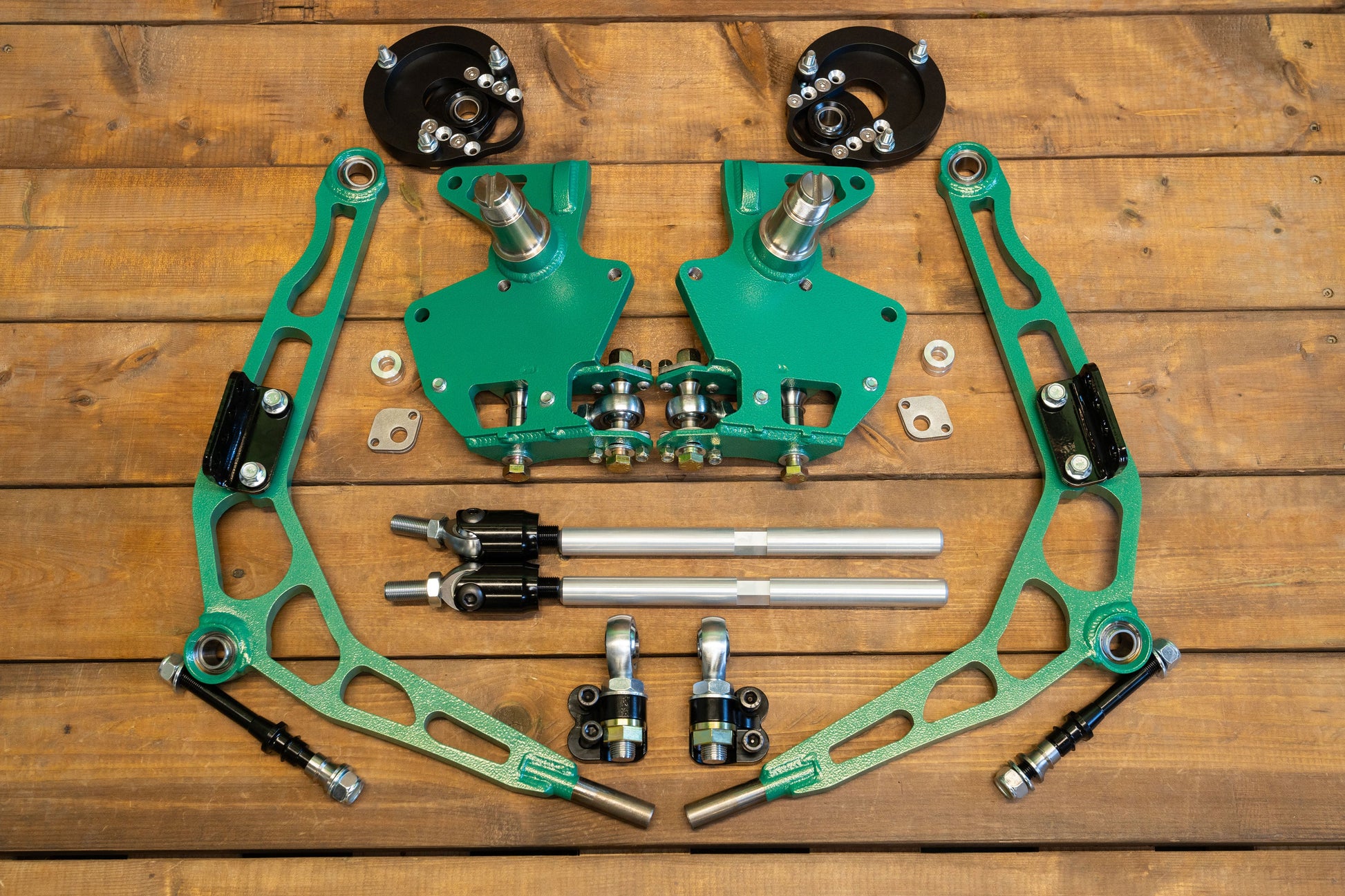

Includes (dependent on chosen option):

• 2 lower control arms

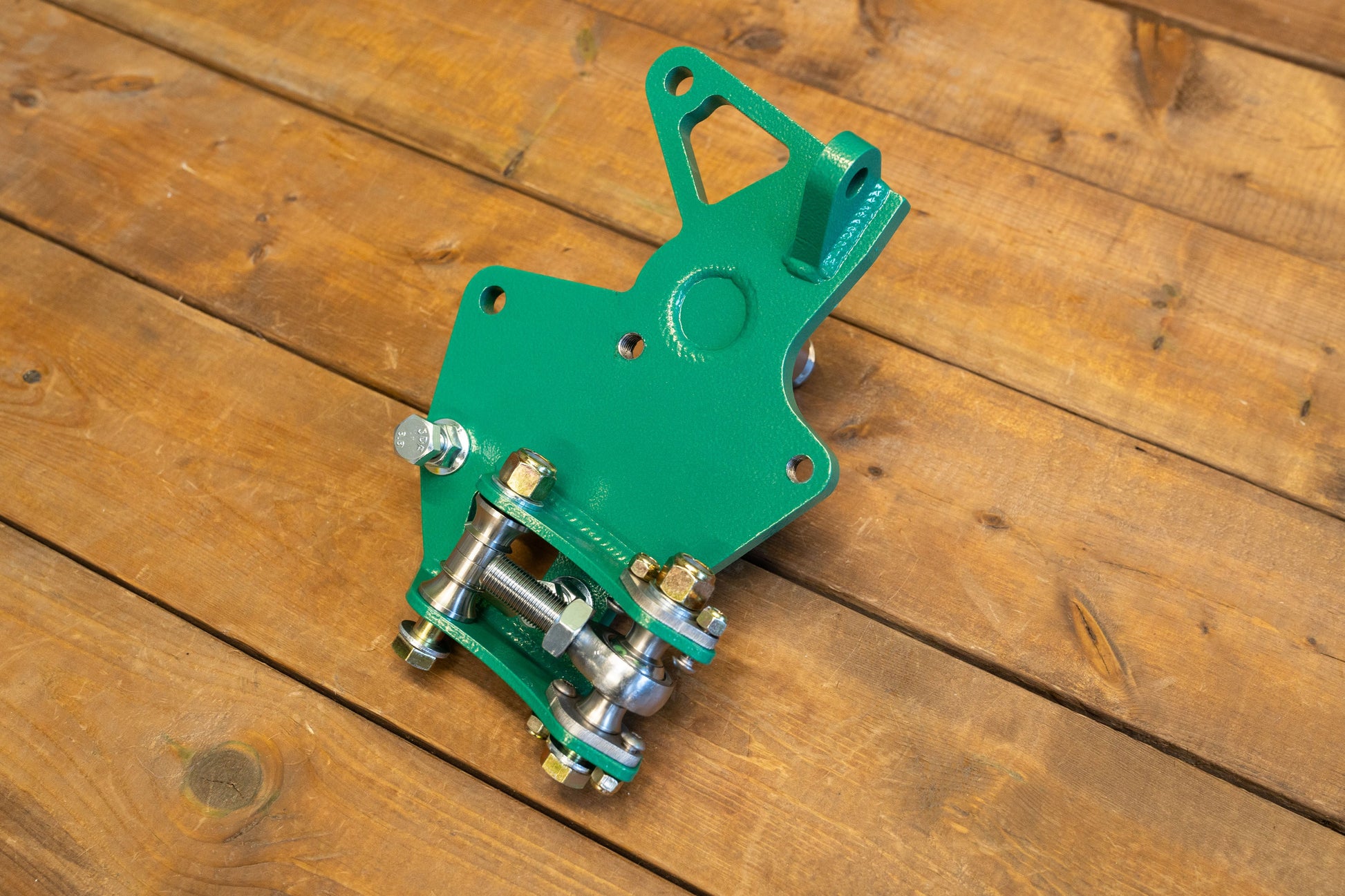

• 2 knuckles
• Ackerman Plates
• 2 inner and outer tie-rods
• 2 caster/camber plates
• 2 On-Car Adjustable Lollipops
• All bearings and hardware required for install

Note: For custom colors, please list it within the order notes.

Note: Please allow 2-3 weeks of fabrication before the item is sent.

Installation Manual

Installation Manual (M3)
