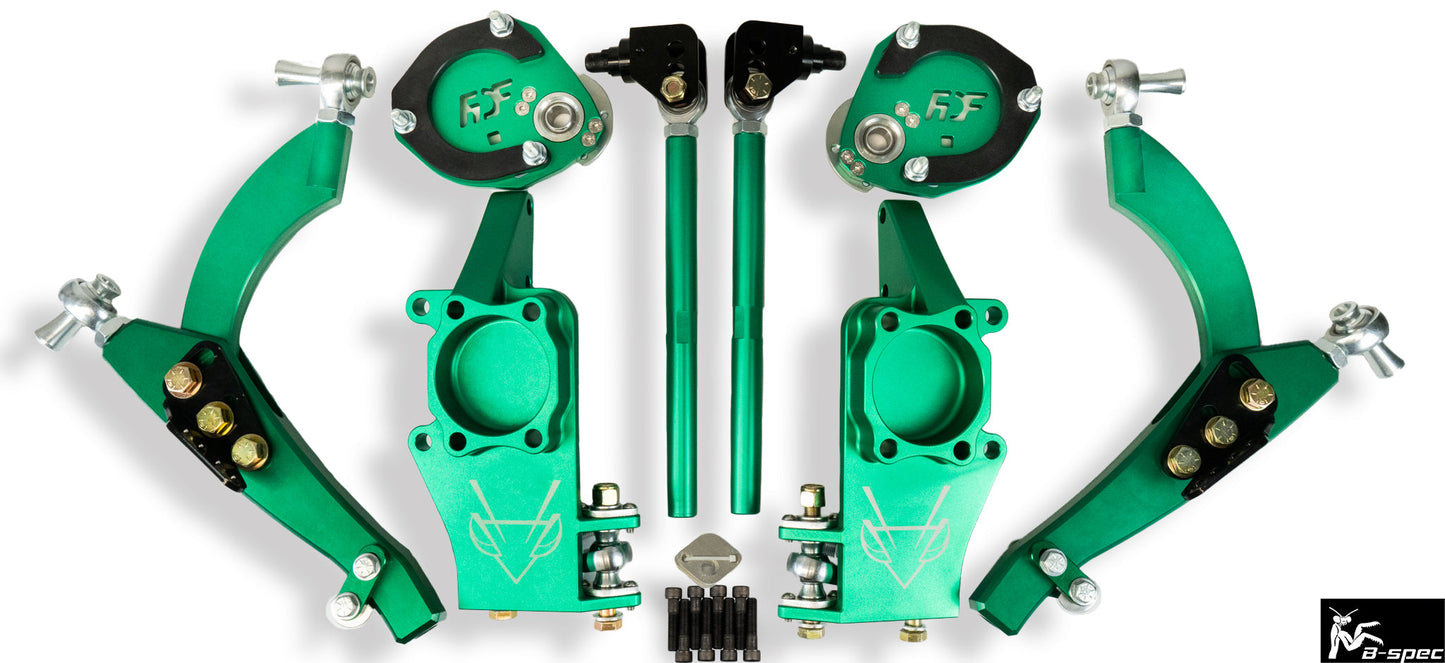

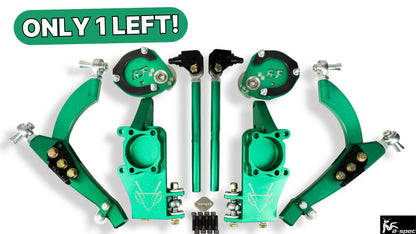

The Billet Nissan S-chassis Mantis Angle Kit
Key Features:
- Angle: 70 degrees+ depending on your steering rack offset and wheel setup
- Tie-rods: the kit includes adjustable offset rack spacers, with inner and outer Heim joints
- Ackermann: adjustable Ackermann
- Roll Center: optimized handling by adding 50mm of roll center correction
- Bump steer: minimal bump steer in drift by perfecting tie-rod pitch angle
- Caster: added trail and reduced caster which adds more grip by increasing tire contact patch, causes less bump steer, less jacking from lock to lock, increases transition speed, and effortless transition while on throttle
- Camber: optimized camber ranging from -3 to -6
- Track Width: 75mm wider per side creating a stable and high clearance front end
- Suspension Travel: long travel range, full lock to full lock at any point throughout suspension travel for increased grip
- Joints: Chromoly Heim joints and spherical bearings with self-lubricating nylon race, easily replaceable
- Durable, Reliable & Lightweight: Made from high-strength alloy steel and aluminum.
Why Choose FDF?
- Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
- High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
-
Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.
