AMT Motorsports Corvette C5 / C6 Vulcan Motor Mounts
AMT Motorsports Corvette C5 / C6 Vulcan Motor Mounts
Couldn't load pickup availability
Alleviate concerns of stock mount deterioration and cracking as well as engine movement with our two piece vulcanized rubber motor mounts.
Not a lot of thought is given to Corvette motor mounts until it's too late. The stock motor mounts are gushy pillows of rubber filled with oil. Over time being exposed to heat and engine movement these mounts begin to deteriorate and eventually crack, spewing oil underneath your car. That gushy feeling of the stock mounts is amplified into a dangerous situation of your engine moving all over the engine bay. The car should not be driven in this state.

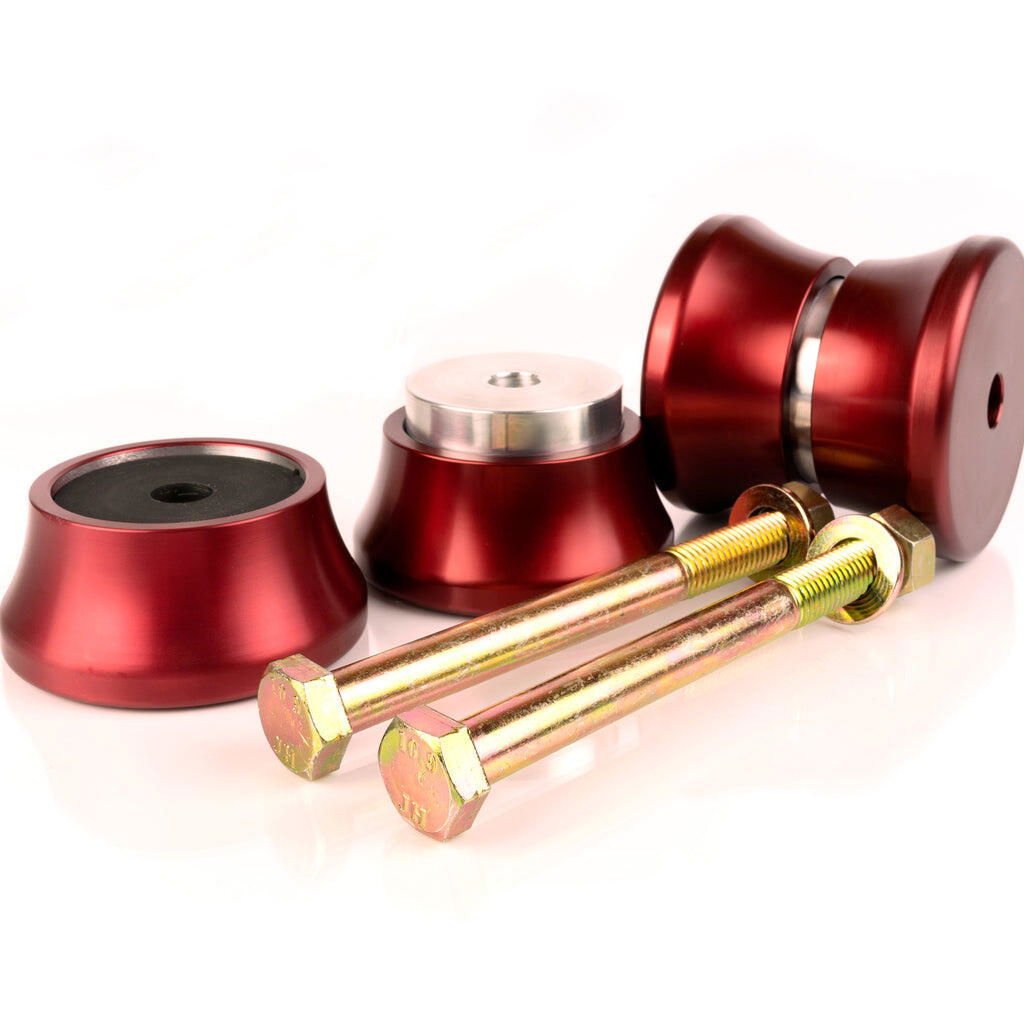

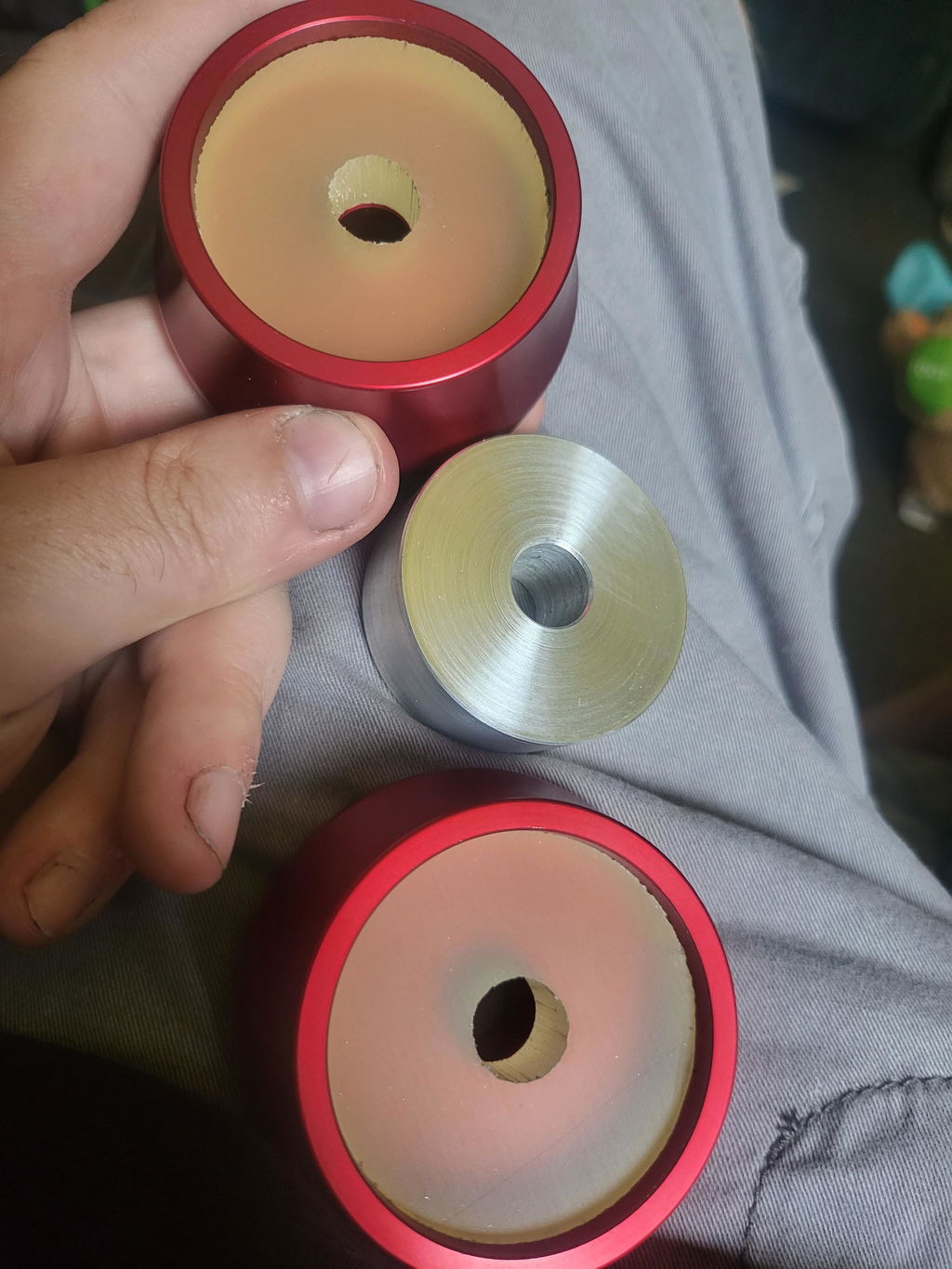

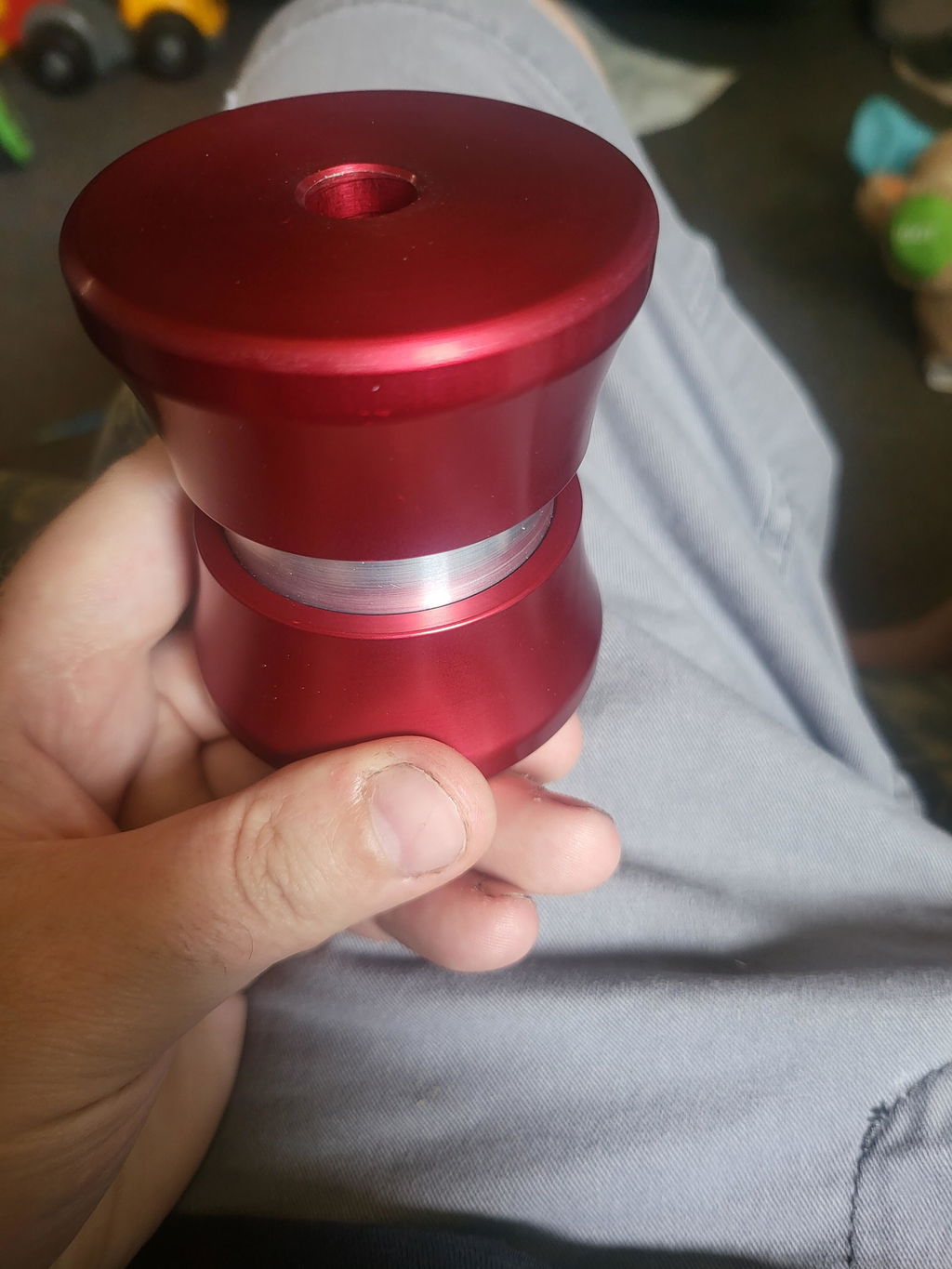

AMT alleviates this concern with a two-piece Vulcan Motor Mounts. Two machined and red anodized 6061-Aluminum cups capture 4 custom machined pieces of vulcanized rubber (street name: hockey puck) to eliminate engine shake.Ā In the middle is a 6061-aluminum disc that is Hard Andodized with teflon to keep the rubber pucks in shape and to prevent galling. Vulcanized rubber has a much higher working temperature than standard polyurethane mounts, so these mounts stand up to all the heat your engine bay can throw at them. No need to wrap them in heat tape to keep the "pucks" in tact. For a demonstration of this resistance, click here to see what happens when a hockey puck is subjected to 4000 degrees Fahrenheit of iron thermite. We guarantee these mounts for as long as the Earth revolves on its axis, and if any part ever fails we will replace them at no charge.
In addition to being the last motor mount you'll ever need to buy, these mounts are much stiffer than stock, eliminating engine movement during performance driving. This difference can be felt on the racetrack, the drag strip, and during spirited driving. The trade-off is more noticeable NVHĀ on a daily commuteĀ but will appreciate once you start driving fast. The mounts also allow more room for oil lines to be run while using a dry sump, and they attach to the engine mount brackets and cradle with included Grade 10 bolts and hardware. You can crash your car into a wall at at least 37 mph and re-use these mounts after the front end of your car is rebuilt. Ask us how we know. Lastly a full color, high quality instruction manual is included to guide you through the installation process.
We now offer a shorter "race" version to allow clearance for a Fast 102 intake. This race version is 3/8" shorter than stock and also is 1/2" smaller in diameter to allow even more room for dry sump lines. These parts are gold anodized. You should not order the race mounts unless you know you need them. You may run into clearance issues with a stock crank dampener, oil pan, leaf springs, etc so be aware of your clearances before ordering the race version.
As always, all machined parts are made in-house at their facility in New York, USA.
Lifetime Gaurantee - If you manage to fail any part of our Vulcan Motor Mounts for any reason at all, we will replace the damaged parts free of charge - no questions asked.
Ā
Download Installation Document
Ā
Customer Reviews

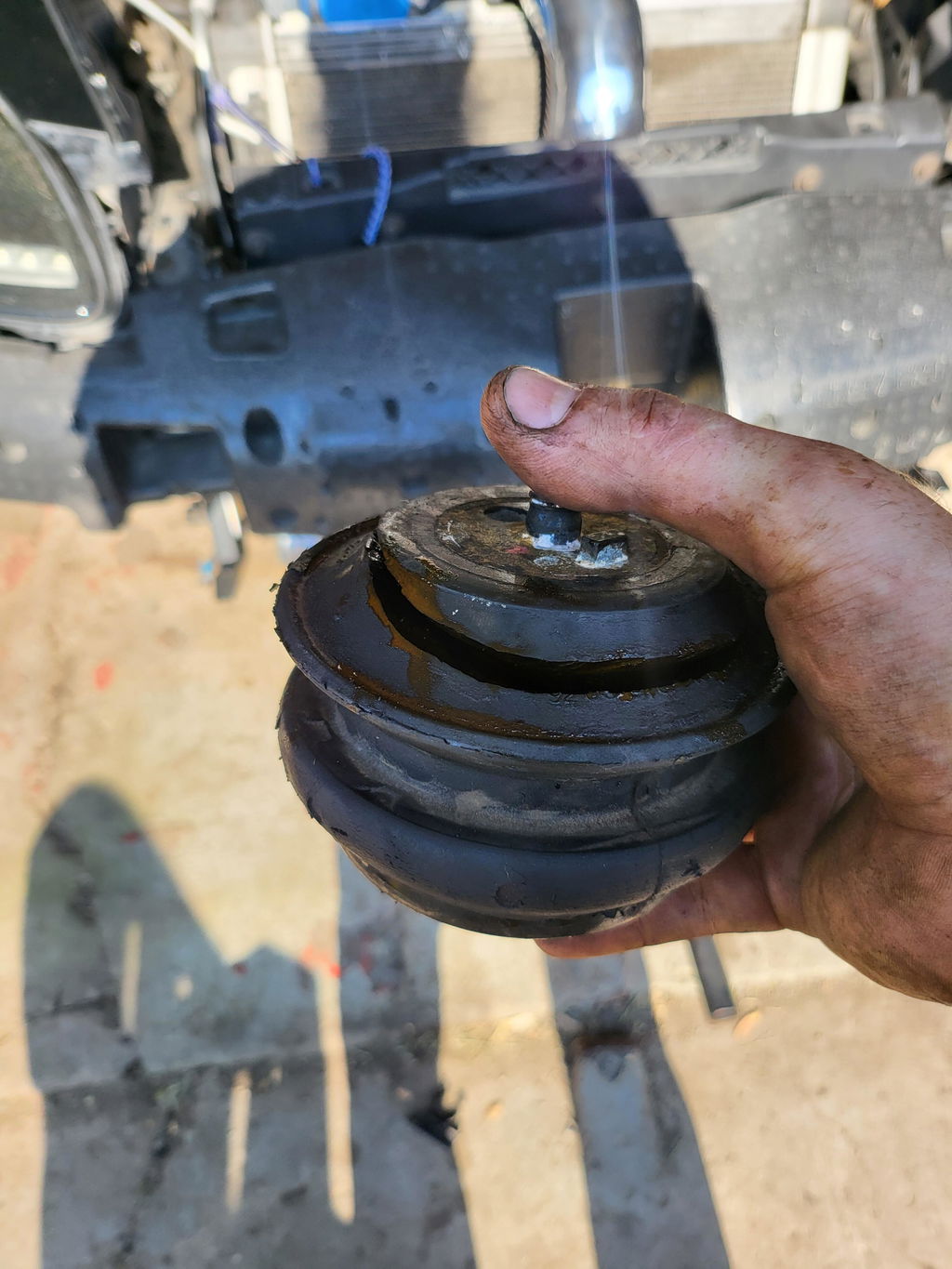

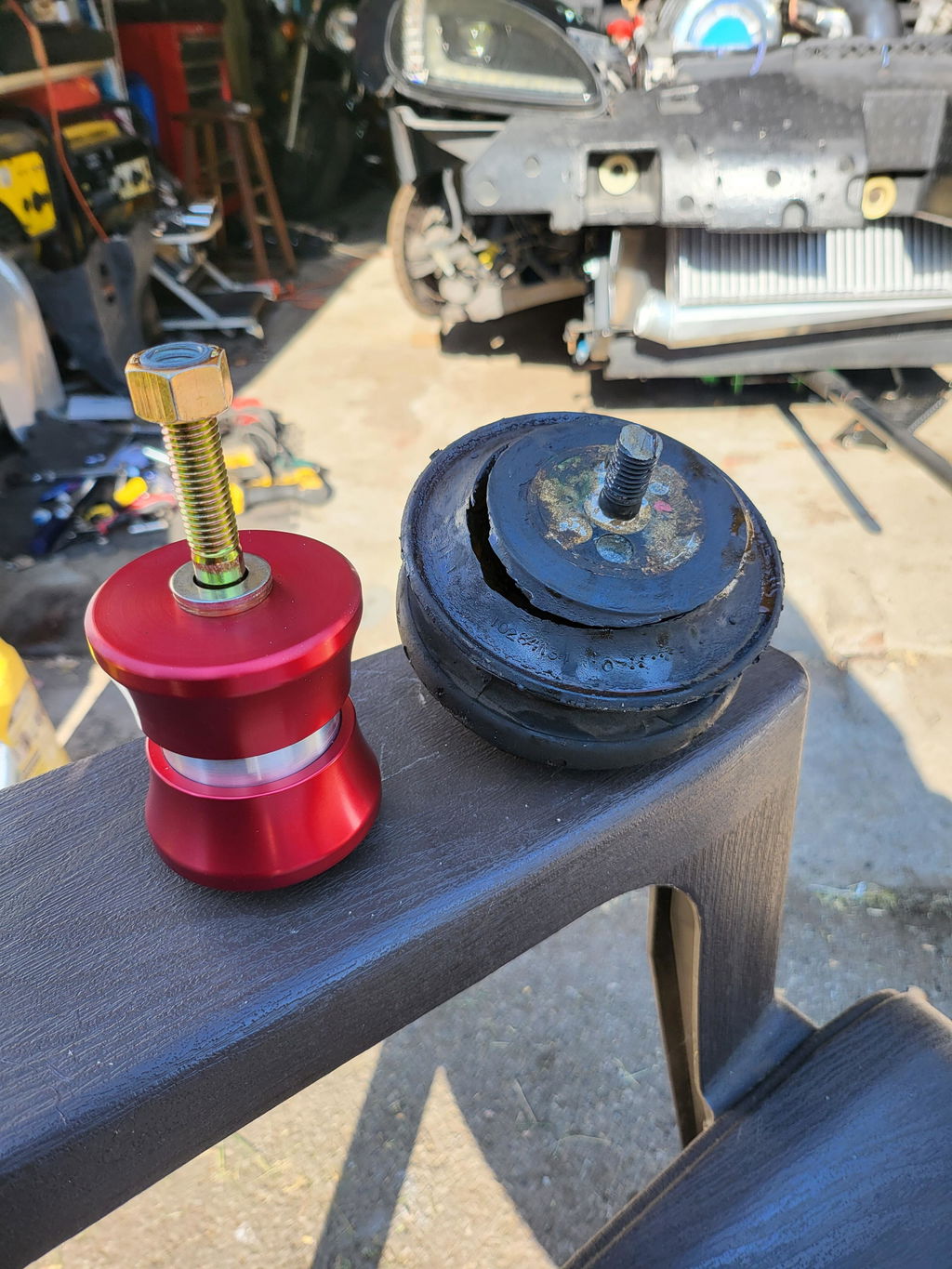

These are by far a major upgrade over stock the oem rubber mounts couldn't take the abuse and shredded leaking luid all over the engine bay and leaving my engine flopping the amt mounts are a mix of metal on the outside and inside and a hard rubber "bushing" in the middle giving you the best of both worlds and making it durable and everything tighter very easy to install and torque down looks better and definitely feels better very minimal increase in noise and vibration but not enough to really notice or effect everyday driving a must have for higher horsepower applications or if you just beat the **** out of it.
Talked with Brian and picked these out. Look like great quality. Shipped and arrived fast
Had a lot of drivetrain flop in the C5 I picked up. Ordered these as I was doing long tubes and they would be easy to access. Massive improvement over stock and hardly any increase in NHV. Now no more drivetrain flop and significantly reduced wheel hop. Will be doing the AMT diff mount next.
Awesome looking product. Very nice quality. Lifetime warranty is great. It's a shame nobody will see them when installed.
