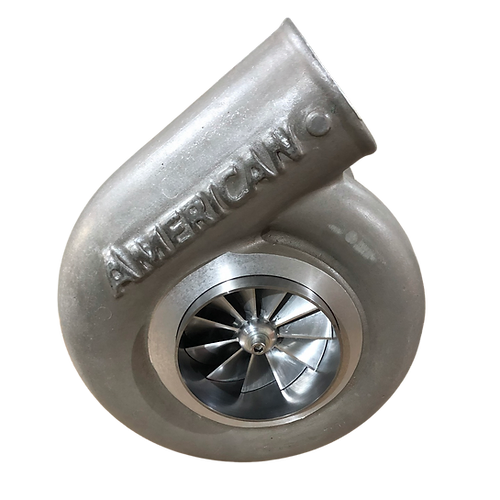

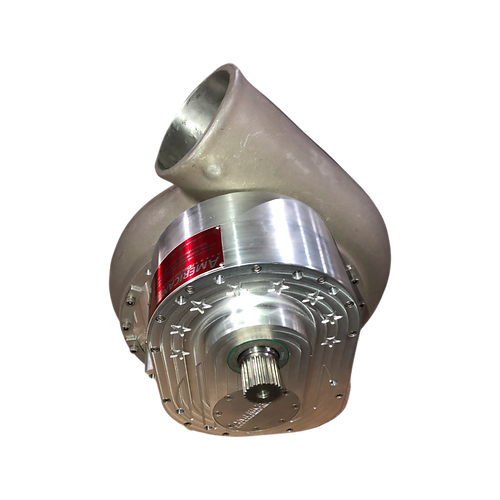

American Forced Induction AF4-136 Supercharger (Cast Housing) Release Date TBD

SKU: AF4-136

$0.00 USD
Shipping calculated at checkout.
WHERE TO BUY?

🔥1 People Looked 👀 At This Today...

 More payment options
  • PRICE AND RELEASE DATE TBD
  • Designed to fit current Procharger F3, and F4 series bolt pattern gear drives
  • Splined input shaft
  • High Effiency cast volute with Billet Insert and Inlet
  • Proprietary Rigid, Tapered, Keyless Impeller Shaft
  • Internally Lubricated (Self-Contained Oiling)
  • Patent Pending Transmission w/ Load Sharing Compound-Bearing
  • Cast Housing

    VOLUTE DIAMETER

    13.5"

    STEP-UP RATIO

    4.74:1

    INLET DIAMETER

    5.95"

    OUTLET DIAMETER

    4.5"

    INDUCER DIAMETER

    5.35" (135.9)

    SUPERCHARGED HP RANGE

    2800+

    MAX IMPELLER RPM

    72K

    OIL CAPACITY

    6oz

    REVERSE ROTATION OPTION

    NO


    * All supercharger units are custom, and built to order. Email for lead times prior to ordering if lead times are an issue.

    *Standard ground shipping once order is complete.

    *No refunds on orders after they are placed.

    *Items sold for "Off-Road Use Only" are illegal in many states and provinces and are intended for racing vehicles which may never be used on a public road. The customer is responsible to conform to local laws and ordinances.
