FDF RaceShop Nissan 350Z/ Infiniti G35 Mega Mantis Angle Kit

This is the big brother to the Mild kit—built for drivers who want more angle, more control, and a beefier setup all around.

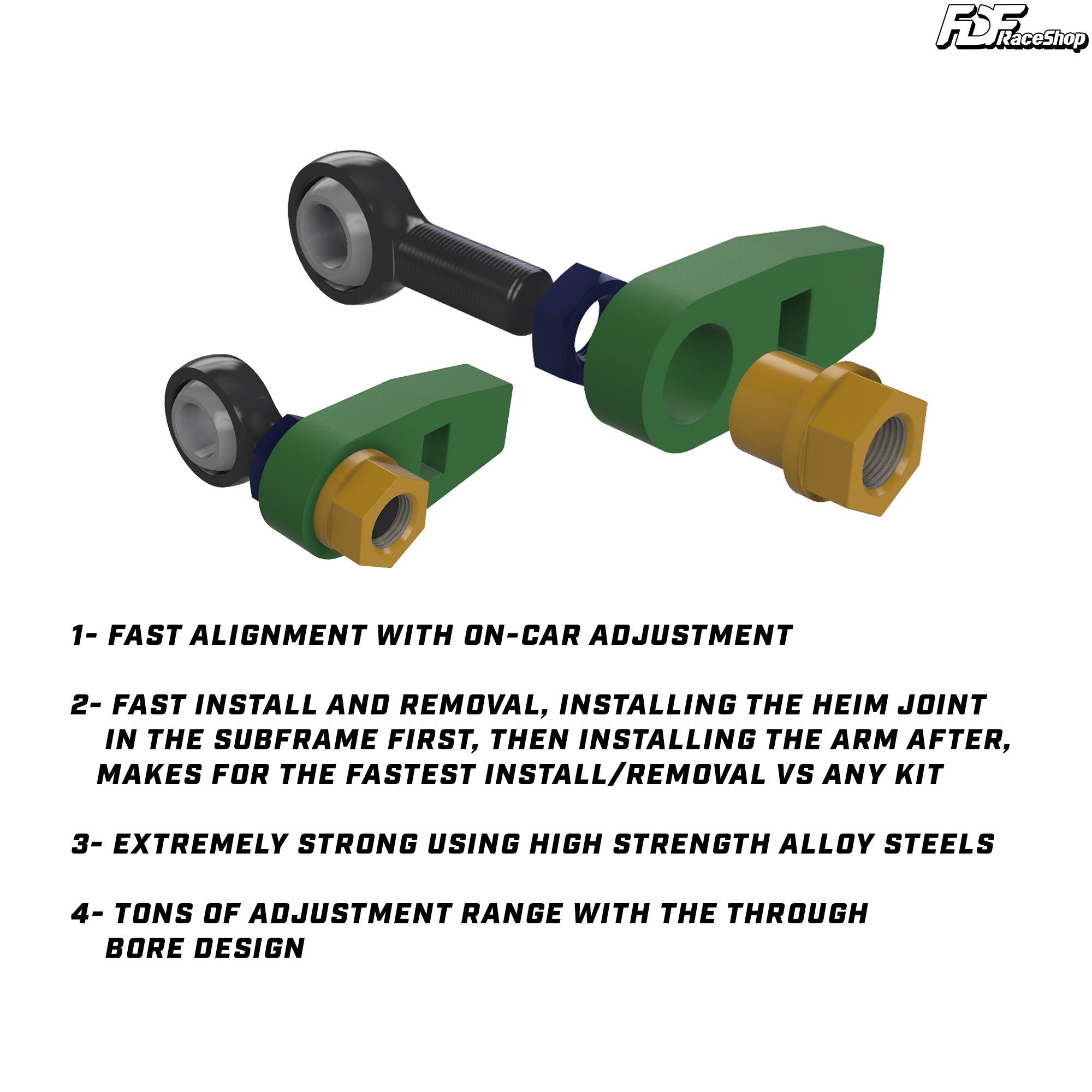

The Mega Mantis kit features a full knuckle design and uses the OEM 350Z bearing hub, so replacements down the road are quick and easy. The lower control arms have uniballs at the knuckle connection, plus smooth adjuster points on both pickup spots—making alignment changes a breeze right on the car.

Up top, the upper control arms thread straight into the knuckle, keeping things tight and responsive.

If you have a relocated rack, let us know. That means no need for offset rack spacers—cleaner geometry and better steering feel right out of the box.

Key Features:

• Adjustability: On-car fine-tuning for both camber and caster, a unique feature not found in other kits.
• Angle: 70 degrees depending on your steering rack setup (rack relocation here).
• Ackermann: Adjustable Ackermann.
• Roll Center: Optimized handling by adding 40mm of roll center correction.
• Bump steer: Minimal bump steer in drift by perfecting tie-rod pickup location.
• Caster: Displaced caster built into the knuckle for optimal alignment force.
• Camber: Optimized camber ranging from adjustable from -3 to -6.
• Track Width: 50-75mm wider per side creating a stable and high clearance front end (Recommend front over fenders).
• Suspension Travel: Long travel range, full lock to full lock at any point throughout  suspension travel for increased grip.
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Note: Must Have Coilovers To Run This Kit.

Note: Wheel Bearing not included.

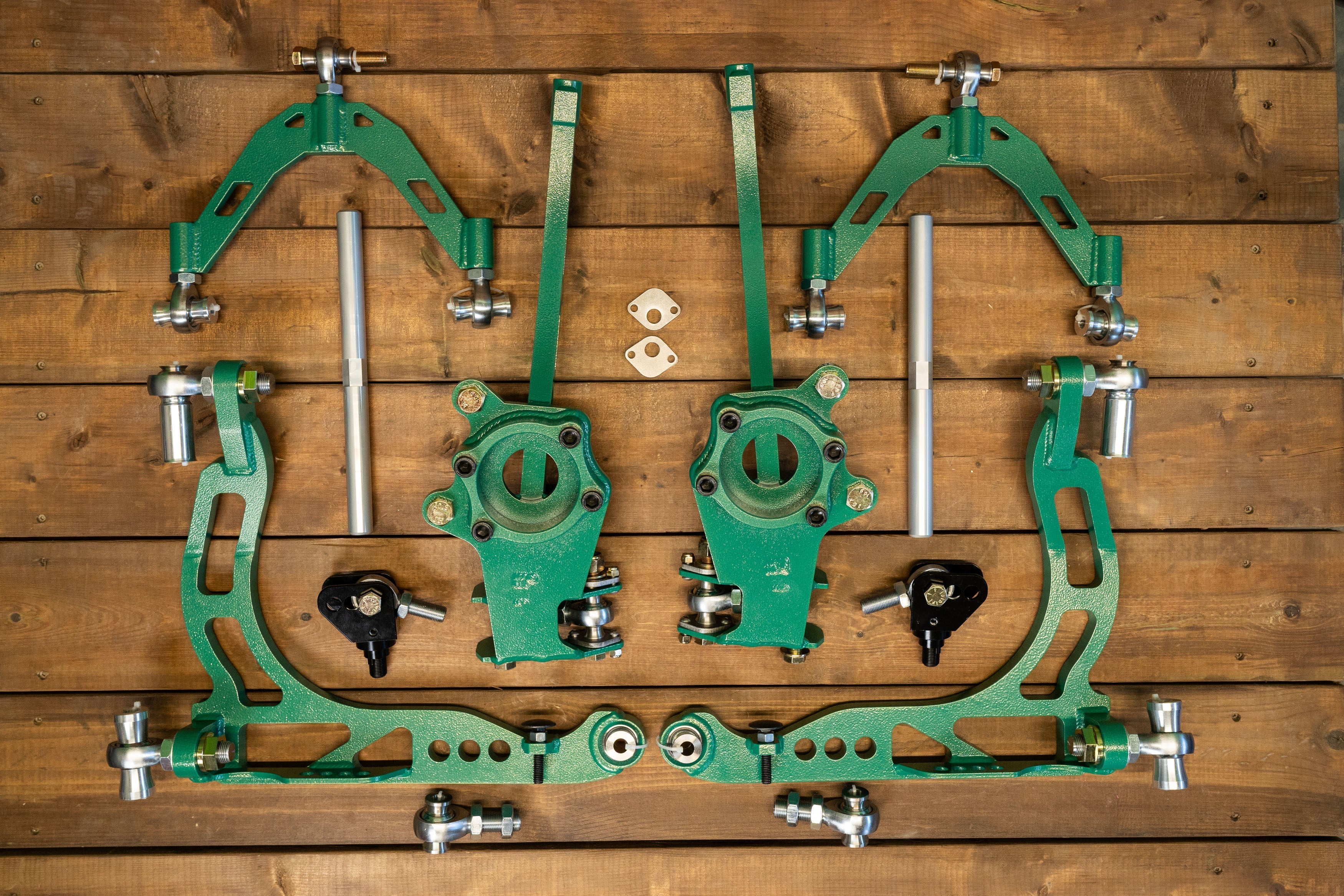

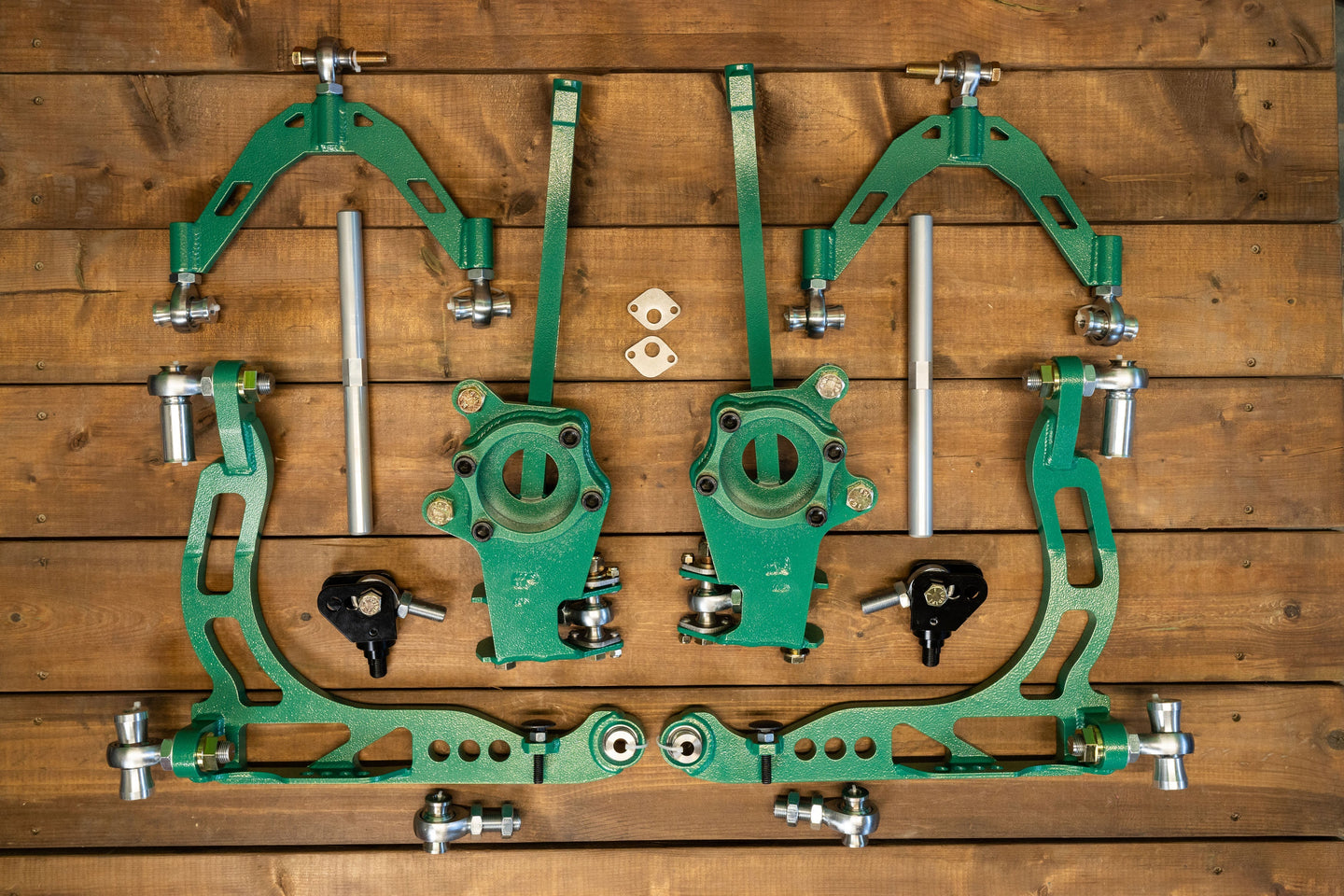

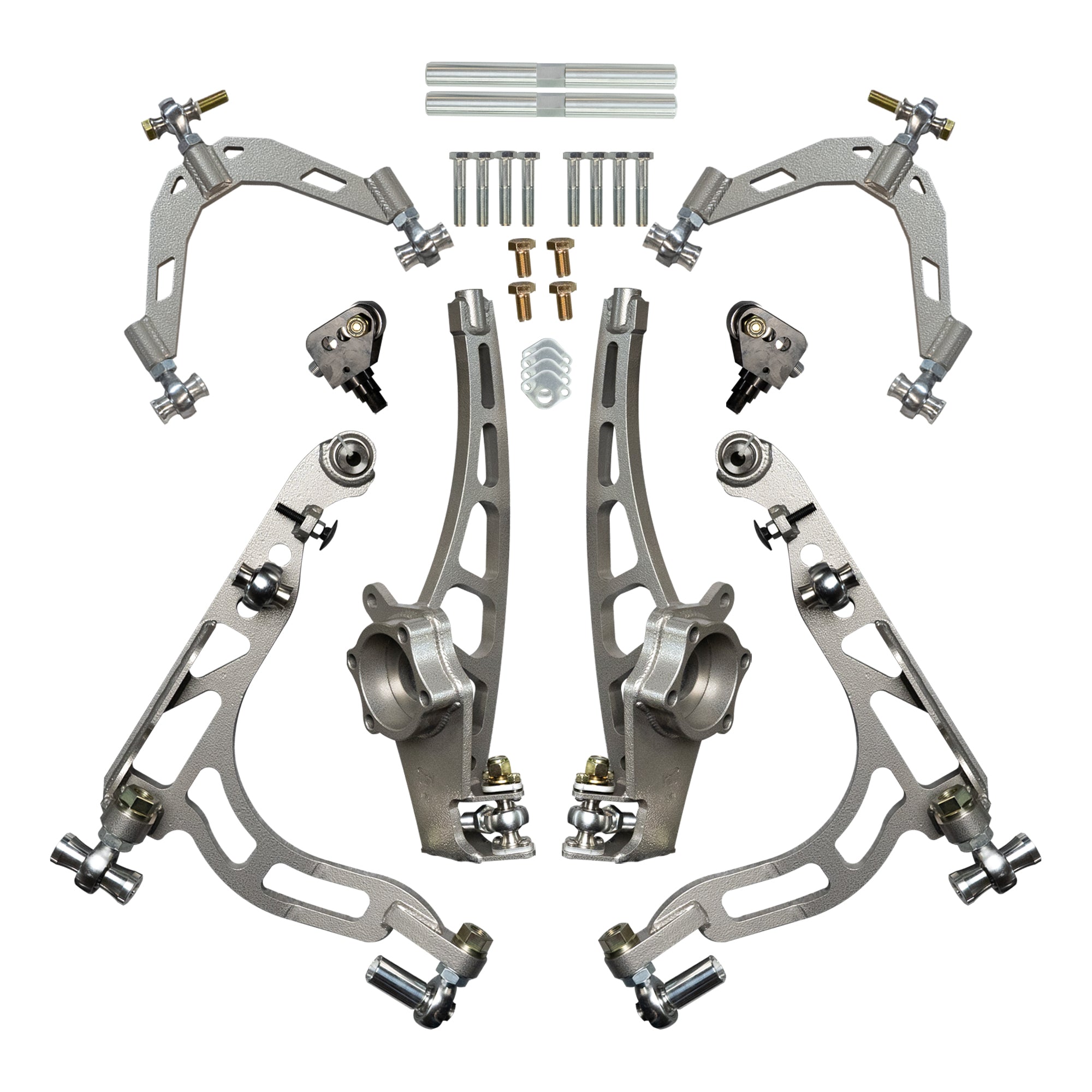

Includes:

• 2 lower control arms
• 2 upper control arms
• 2 knuckles
• Ackerman Plates
• 2 inner and outer tie-rods
• All bearings and hardware required for install

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.

Installation Manual

Spare Parts

Nissan 350z Mega Mantis Knuckle Assembly

Nissan 350z Mega Mantis Tie-Rod Assembly

Nissan 350z Mega Mantis Front Lower Control Arm Assembly

Nissan 350z Mega Mantis Front Upper Control Arm Assembly
