FDF RaceShop Nuke Performance - Air Jack 90 Competition Complete Set 3pc, 8 BAR / 120 PSI

Complete set of 3pc Nuke Performance 8 BAR / 120 PSI Air Jacks 90 Competition: Fast, lightweight, reliable, and easy-to-use air jack kits.

A product born out of the request from motorsports for an easy-to-use, lightweight, and reliable air jack setup that can be activated by an air supply pressure of as low as 8 BAR / 120 PSI. Lifts your vehicle to new heights by the use of a common workshop compressor.

Key Features:

• Lightweight motorsports onboard air jacks

• 8 BAR / 120 PSI work pressure

• Works with common workshop air compressors

• Complete set with jacks, safety props and hose kit

• 3pc Set lifts 1206 kg / 2658 lb at as low as 8 BAR / 120 PSI

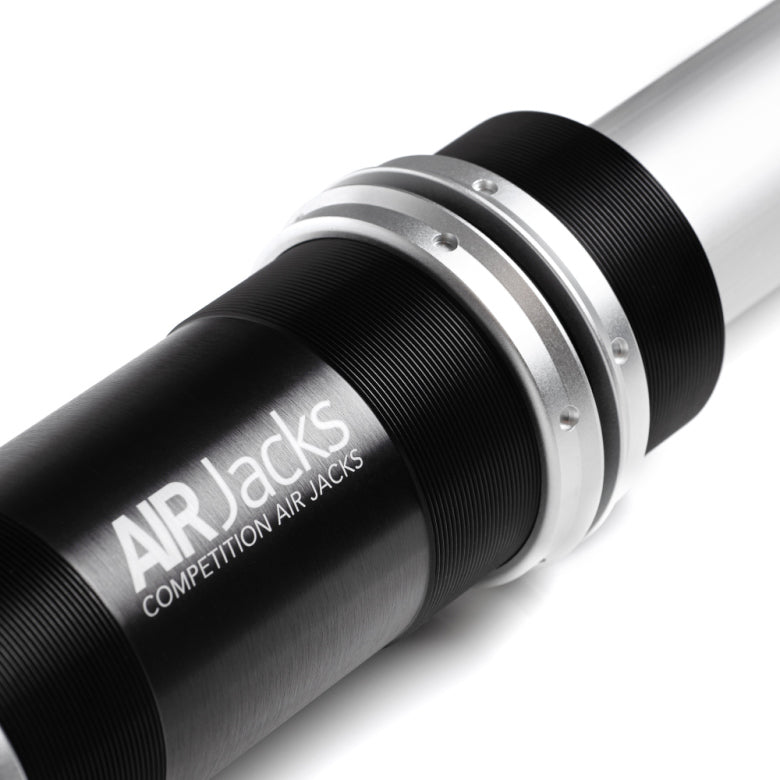

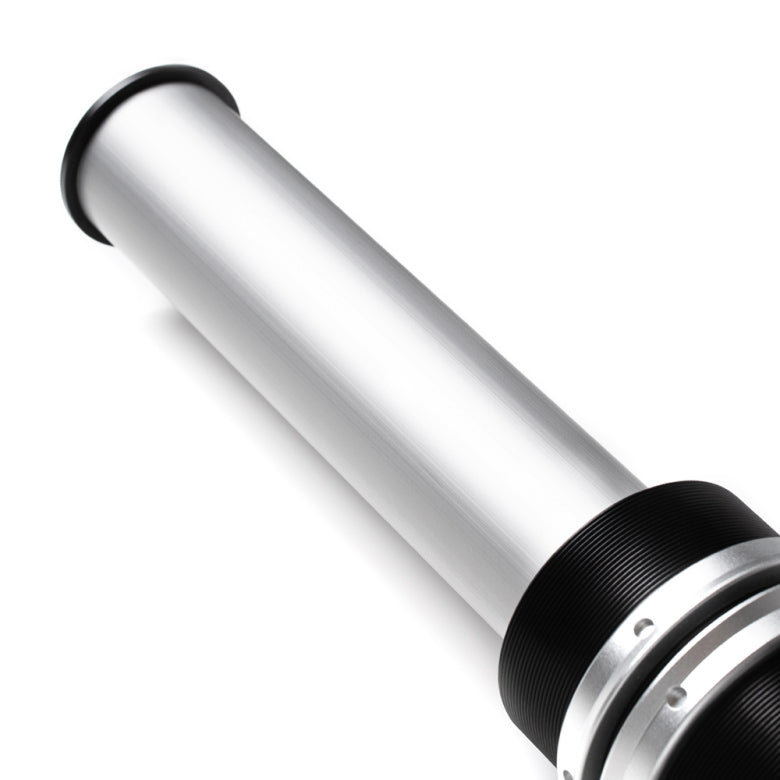

• Body and piston of high strength aluminum

• Total lift length of 251mm / 9.88"

The Nuke Performance 8 BAR (120 PSI) Air Jack 90 Competition is a fast, lightweight, and reliable air jack, perfect for quick repairs on track days. It operates on standard 8 BAR (120 PSI) workshop air compressors.

Highlights:

• Durable, Lightweight Design: Made of high-strength aluminum with anodized finish and low-friction bearings, ideal for high-demand motorsports.
• Compatible with Common Compressors: Works with 8 BAR compressors; lifts 402 kg (886 lb) per jack, totaling 1206 kg (2658 lb) in a 3-jack setup at 8 BAR.

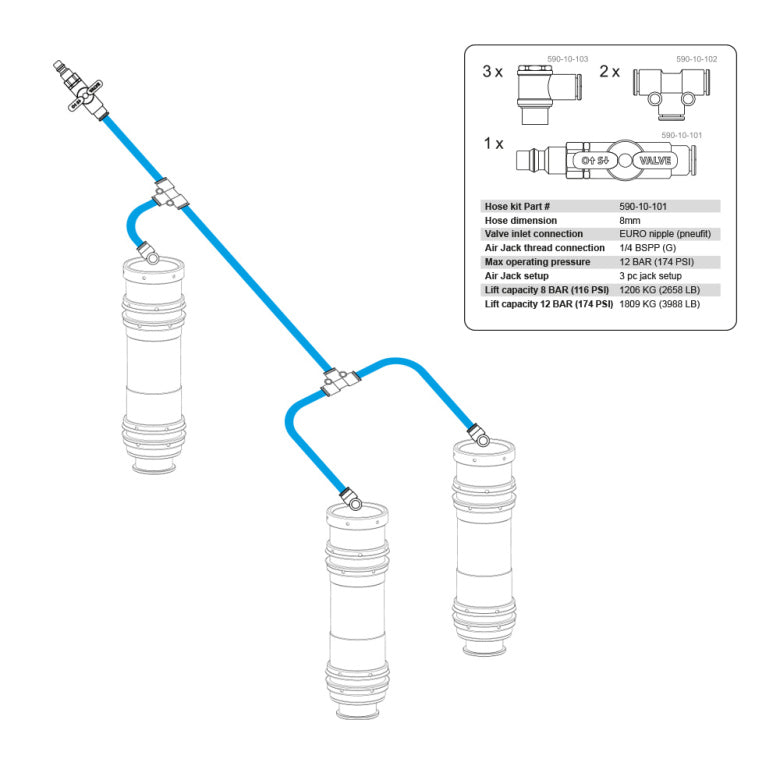

• Complete 3-Jack Set: Includes hoses, pneufit fittings, safety props, and air jacks. 2- and 4-jack sets are also available for varied setups.

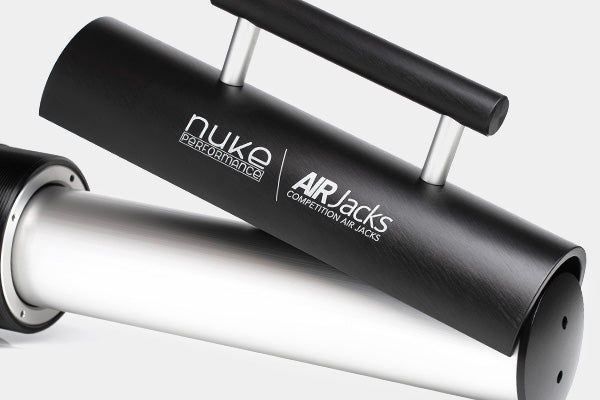

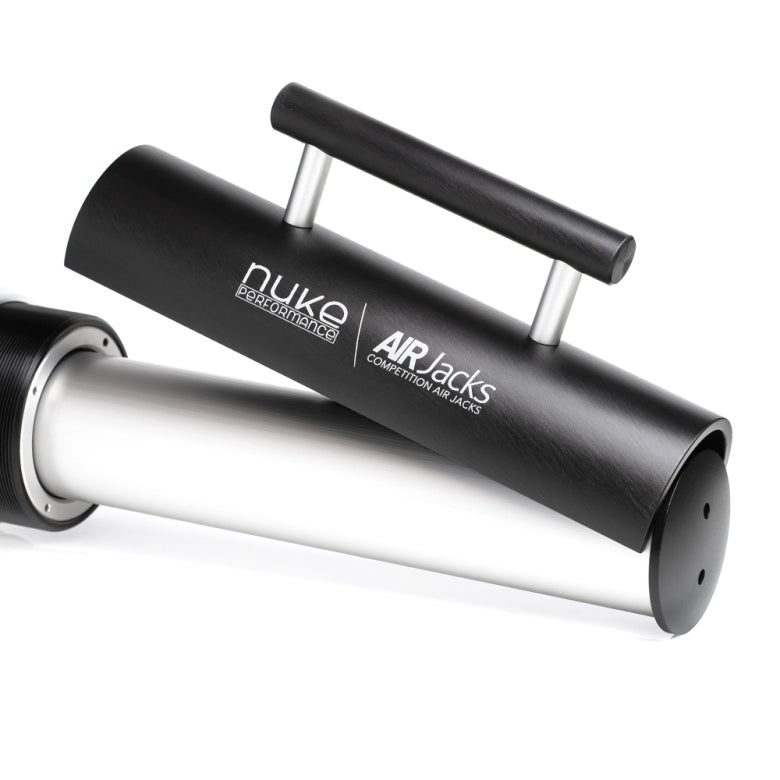

• Safety Props: Included to secure the vehicle while lifted, preventing accidents if pressure drops.
• Second-Stage Lift with Elephant Feet: Optional attachment raises vehicle to 480mm, ideal for undercarriage work or long-term storage.

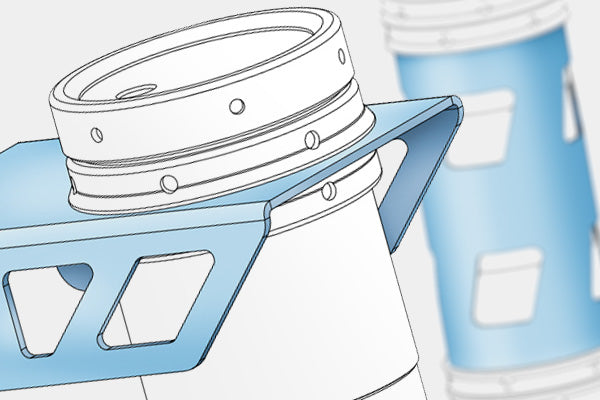

Mounting:

Installation is easy with steel plates, brackets, or tubes that can be welded to your vehicle for a secure setup.

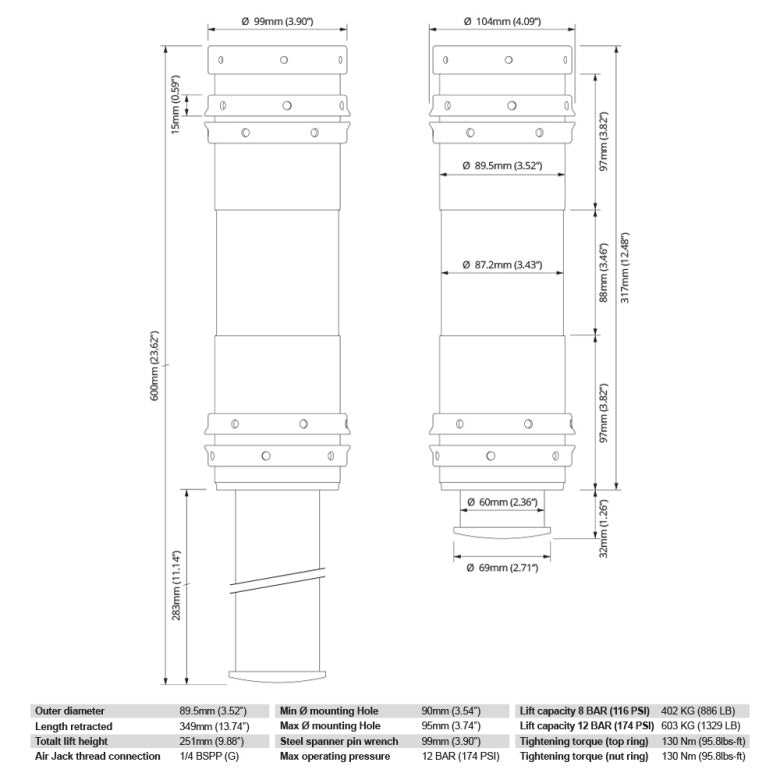

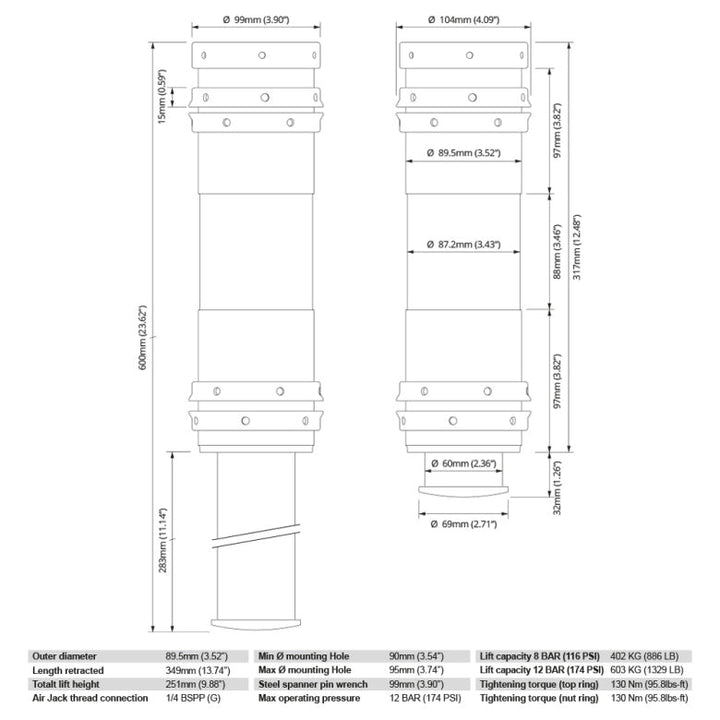

Air Jack Specifications:

For more information about specifications, view the product manual.

 Download User Manual (.pdf)
 Accessories / Spare Parts

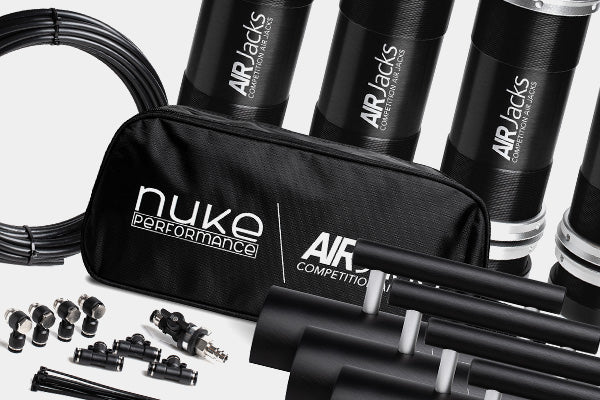

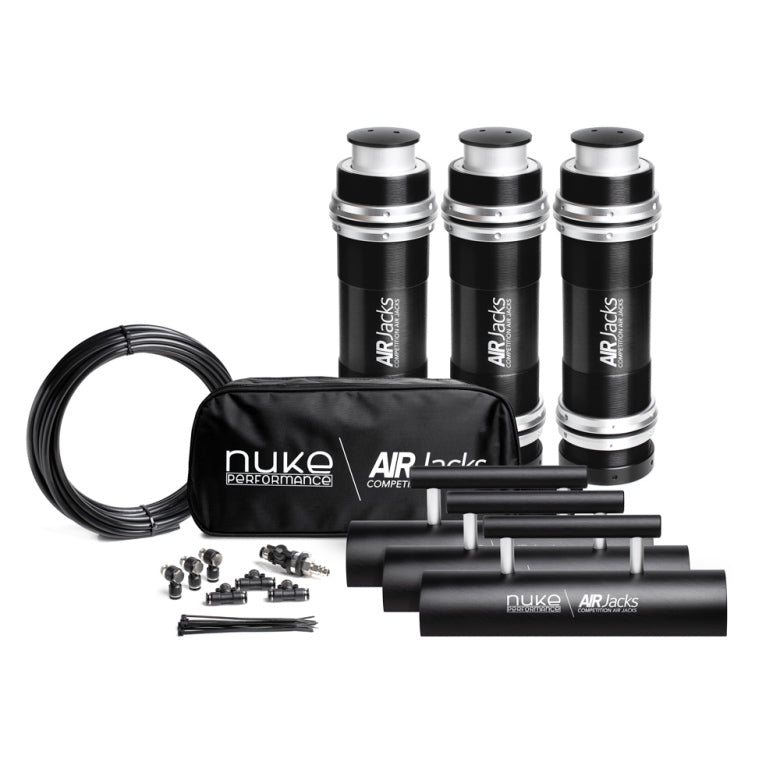

Includes:

• 3 x Air Jack 90 C Air Jacks

• 3 x Air Jack 90 C Safety Prop

• 1 x Safety Prop Carry bag

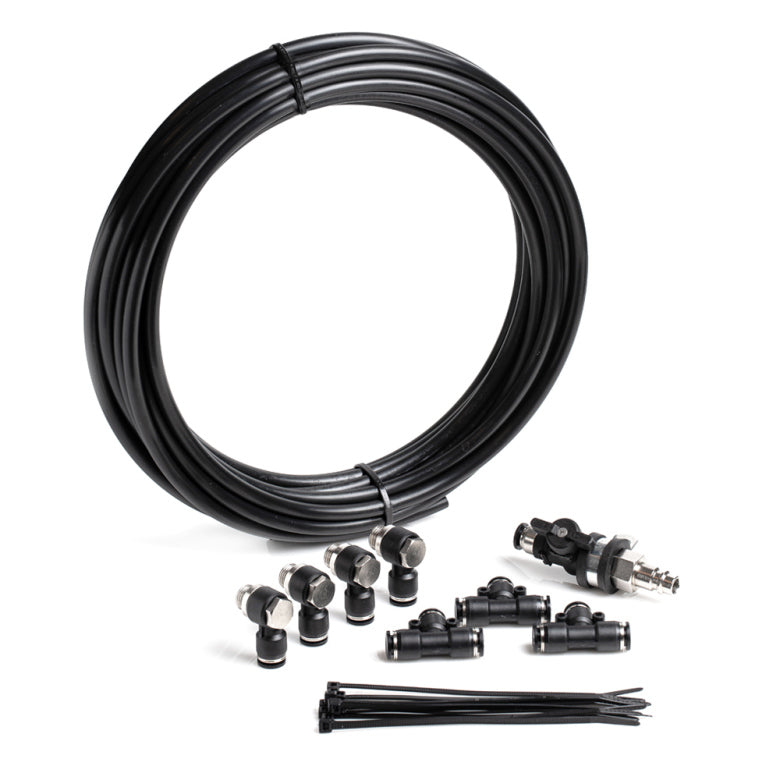

• 3 x Quick Connect 8mm Pneufit T-fittings

• 3 x 1/4" Barb-fitting to Quick Connect 8mm

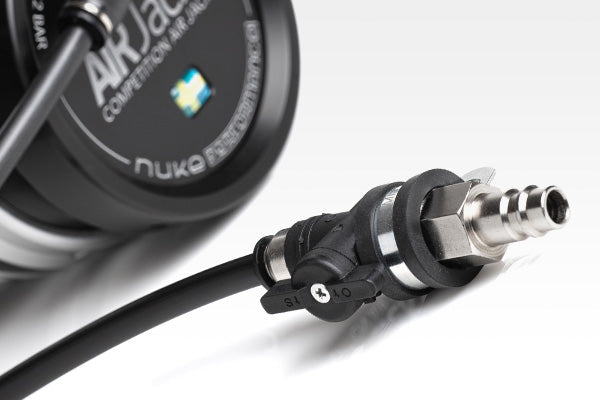

• 1 x Petcock ball valve with EURO pneufit fitting

• 10m (32.8ft) 8mm Quick Connect pneufit hose

• 10 x Cable ties
