Hinson Motorsports Harness Package for Dual Fuel Pump Installation

Hinson Motorsports Dual Fuel Pump Wiring Harness

Upgrade your fuel system with the Hinson Motorsports Dual Fuel Pump Wiring Harness, designed for seamless integration with our fuel pump modules. This relay-controlled harness simplifies installation while ensuring proper power delivery with appropriately sized wiring to handle the fuel pumps' current draw efficiently.

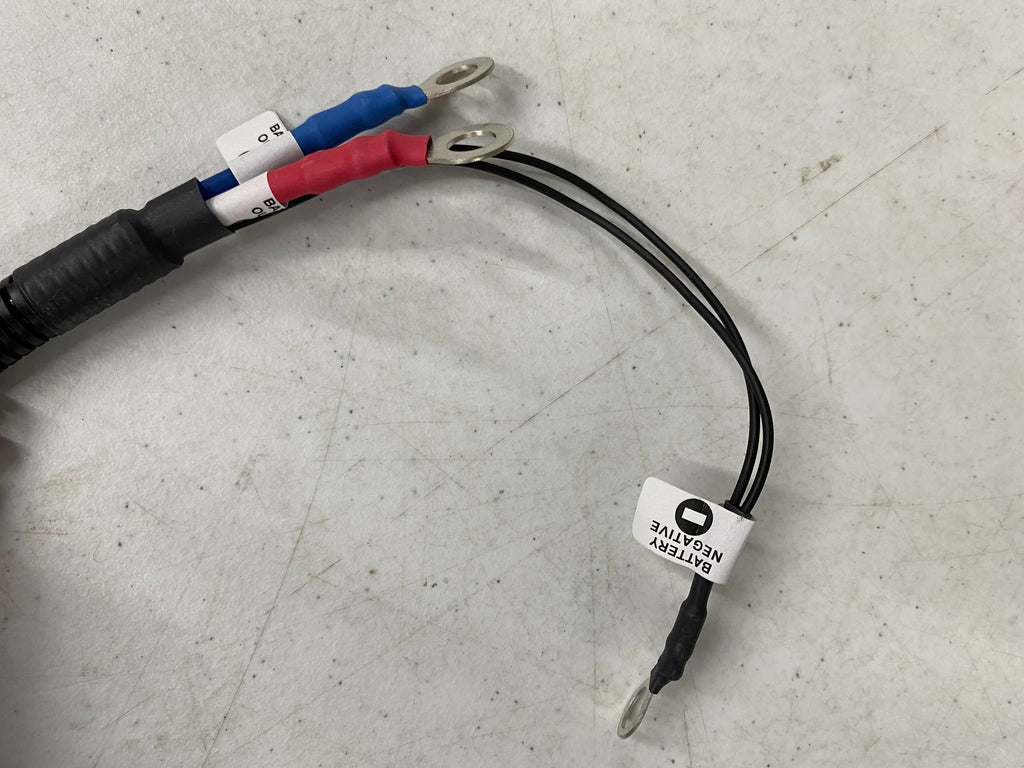

With two battery connections and individual pump relays, this harness allows precise control over your fuel pumps. Installers can choose to:
Run both pumps continuously
Activate the second pump based on boost pressure (Hobs switch included)
Trigger via RPM signal
Engage at wide-open throttle (WOT)
Activate via a nitrous switch or other custom inputs

Key Features:
Plug & Play Design Directly connects to the Hinson Fuel Pump Modules 6-pin connector
Dual Relay System Provides proper power distribution for maximum efficiency
Versatile Activation Options Wide-open throttle, boost reference, RPM signal, or nitrous activation
Includes a 4-PSI Hobs Pressure Switch for optional boost-triggered operation

Note: While this is a plug & play harness, professional installation is recommended. Some factory harness modifications are required for the fuel level sensor and ECU fuel pump trigger wire. Due to time constraints, we cannot provide step-by-step guidance for novice installers.

Ensure reliable performance and hassle-free installation with the Hinson Motorsports Dual Fuel Pump Wiring Harness!
