Edelbrock Part # 61255 Victor Jr. 23° 220 cylinder heads are designed for small-block Chevy Its 64cc combustion chamber yields around 10:1 compression ratio in a typical flat-top application and about 12.5:1 when used with some of the most common 12cc dome pistons. One of the key features of the Victor Jr. 23° 220 cylinder heads is the CNC machined chambers and bowls, which result in consistency and improved performance. They also feature angled spark plug holes and maintain the stock 23° valve angle as well as the intake flange bolt pattern for use with 1986 and earlier intake manifolds. All of this allows these cylinder heads to deliver 530-580 hp potential right-out-of-the-box, making them ideal for a budget minded engine build desiring a high quality cylinder head that still uses a stud and guide plate rocker system.Cylinder Head Specifications: • Finish: Satin • Designed for use with Hydraulic Roller camshafts • Combustion chamber volume: 64cc • Intake runner volume: 220cc • Exhaust runner volume: 85cc • Intake valve diameter: 2.10" • Exhaust valve diameter: 1.60" • Valve stem diameter: 5/16" • Valve guides: Manganese bronze • Deck thickness: 11/16" • Valve spring diameter: 1.55" • Valve spring maximum lift: .630" • Rocker stud: 7/16" • Guide plate: Hardened steel • Pushrod diameter: 5/16" • Valve angle: 23° • Exhaust port location: Raised .300" • Spark plug fitment: 14mm x .750 reach, gasket seat

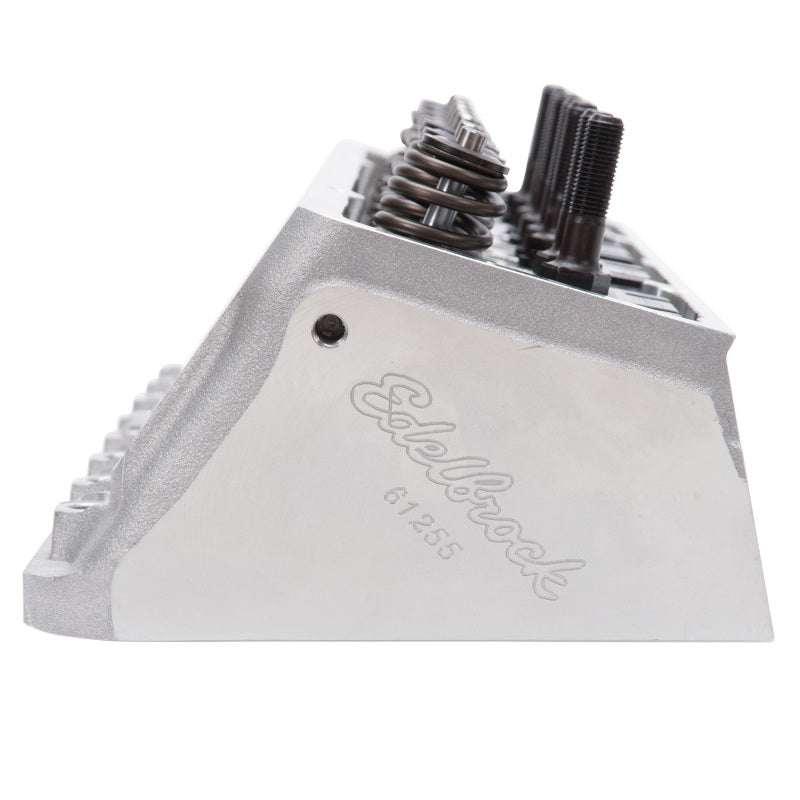

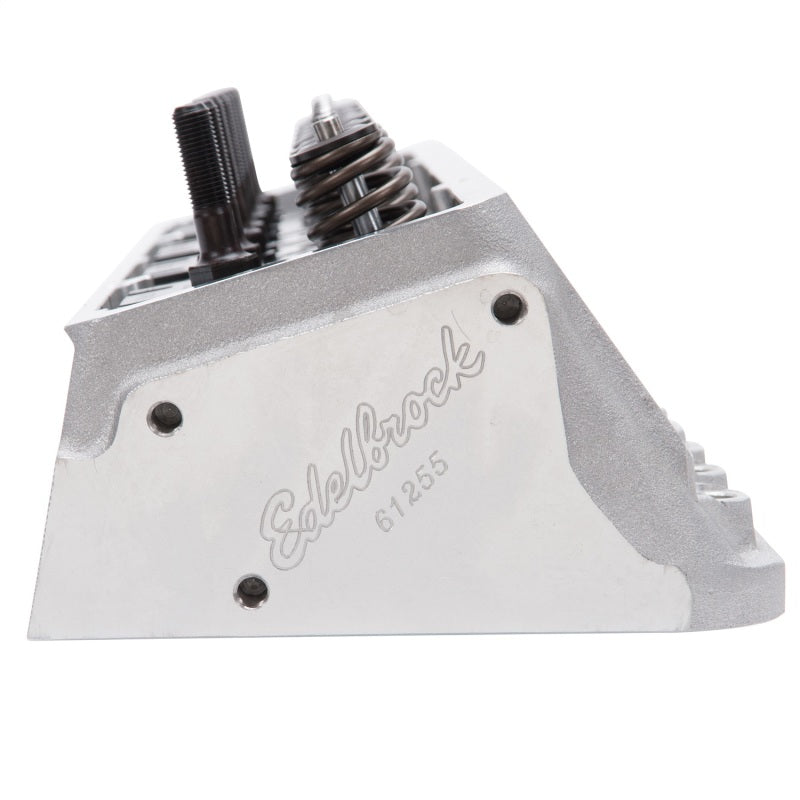

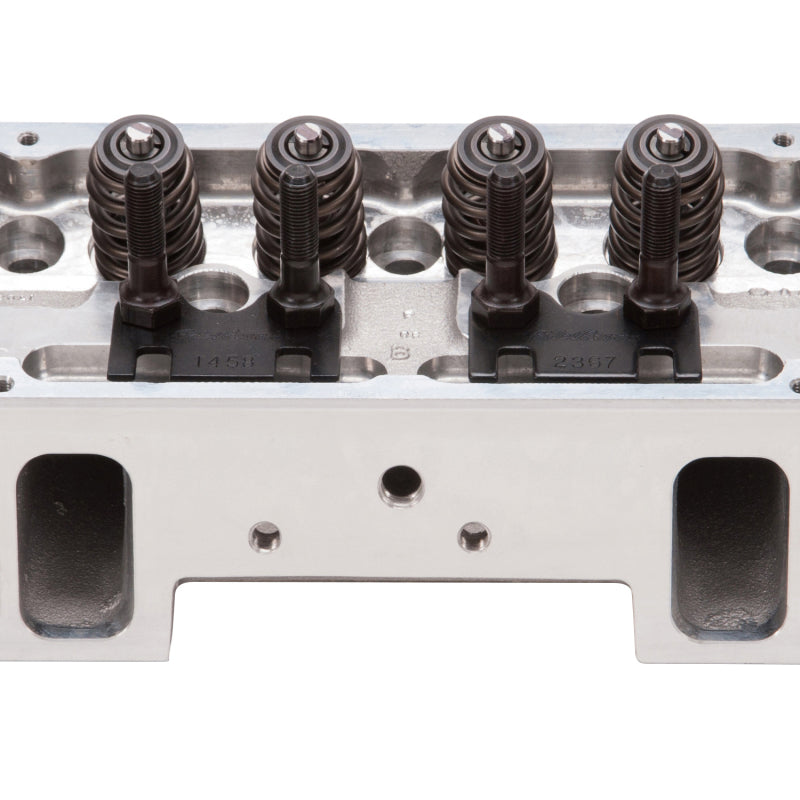

Edelbrock Cylinder Head Victor Jr SBC 23 Deg 220cc Complete for Hydraulic Roller Cam
SKU: EDE61255
$2,246.09 CAD
Shipping calculated at checkout.
Special Order Item Delivery times depend on manufacturer fulfillment and carrier performance. Expedited shipping reflects how the order is placed with the manufacturer and does not guarantee delivery dates. However, due to FI Performance’s industry relationships, we may be able to assist with expedited processing when possible. If timing is critical, please call us before ordering at (203) 644-0712.
