FDF RaceShop NISSAN S-CHASSIS MANTIS ANGLE KIT

The Nissan S13/S14/S15 Mantis Angle kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

• Adjustability: Our innovative lower control arm design introduces on-car fine-tuning for caster and camber.
• Angle: 70+ degrees depending on your steering rack setup.
• Ackermann: Adjustable Ackermann.
• Roll Center: Optimized handling by adding 50mm of roll center correction.
• Bump steer: Minimal bump steer in drift by perfecting tie-rod pickup location.
• Caster: Displaced caster built into the knuckle for optimal alignment force.
• Camber: Optimized camber ranging from adjustable from -3 to -6.
• Track Width: 50-75mm wider per side creating a stable and high clearance front end. (Recommend front over fenders).
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Durable & Reliable: High Strength Alloy Steel and Aluminum is used throughout all components.

Choose the options according to your preferences or send us an email if you need help deciding sales@fdfraceshop.com.

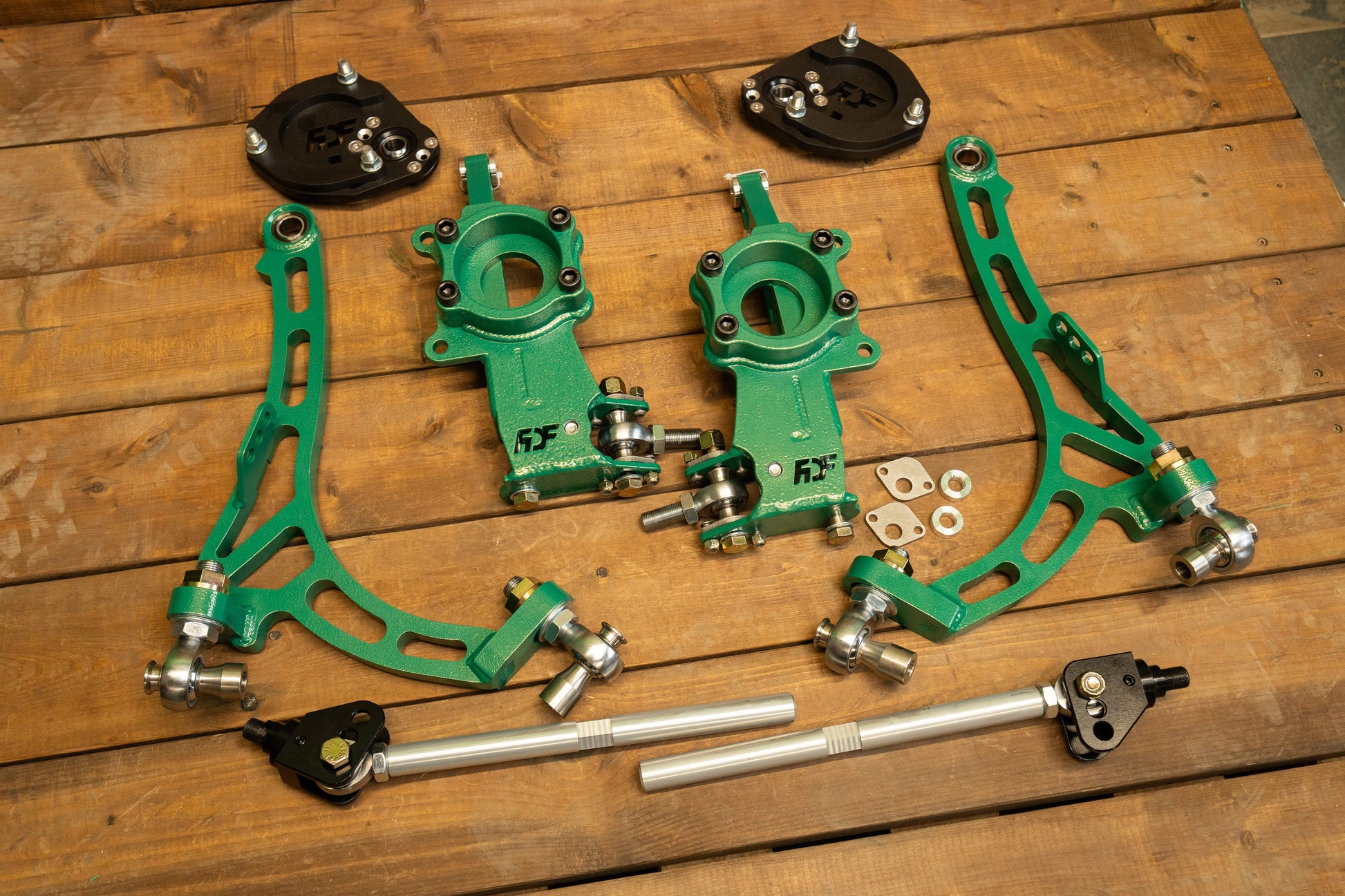

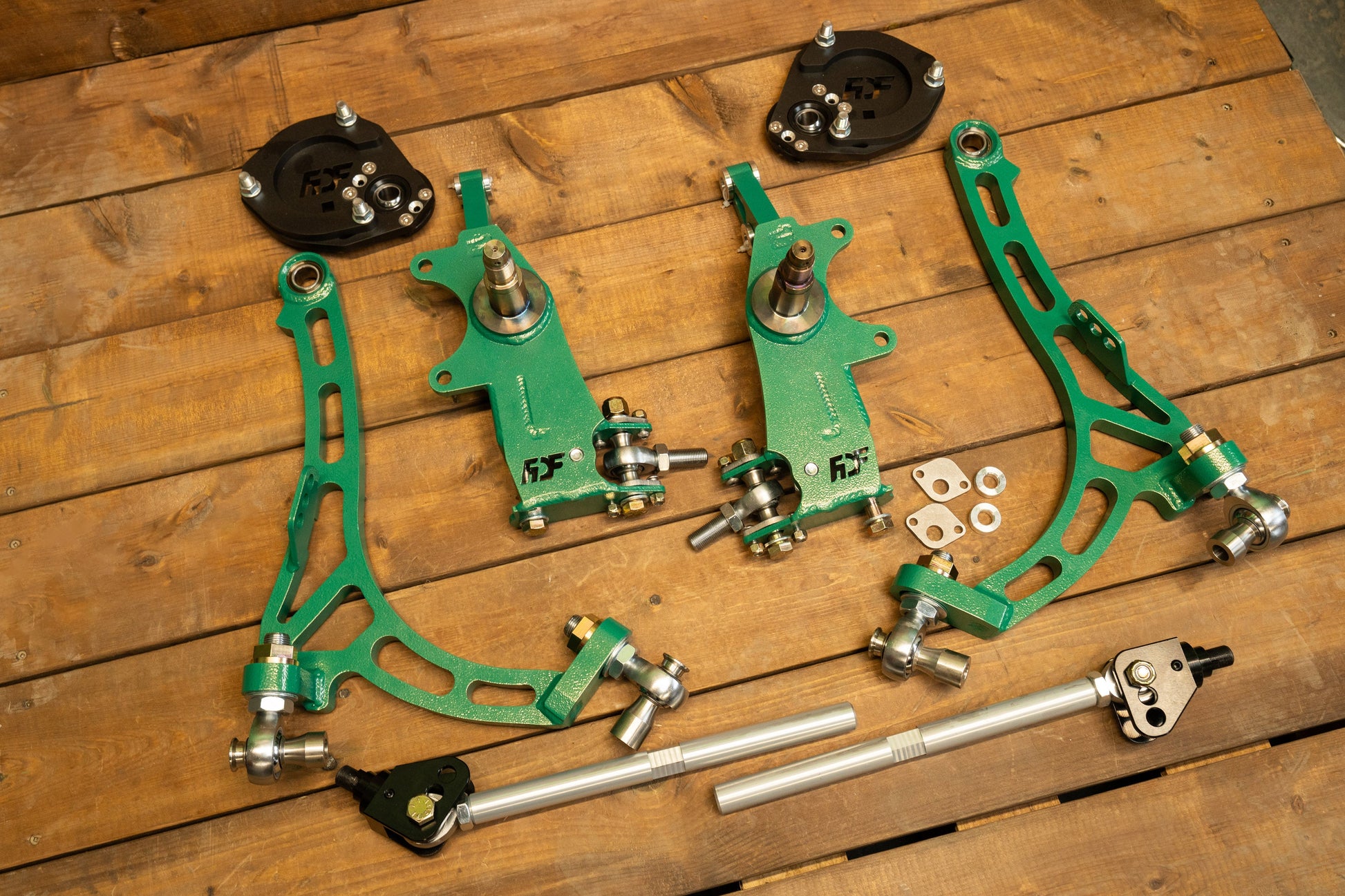

Included:

• 2 lower control arms
• 2 knuckles- Ackerman Plates
• 2 inner and outer tie-rods
• 2 caster/camber plates

FDF updates to the kit include:

• 1 piece LCA with on-car adjustment at all points
• Uniball bearing on the outer ball joint
• Knuckle with interchangeable spacers to use on s13/14/15 coilovers
• Integrated bump stop on the knuckle for fine-tuning your angle limit

All hardware required for install included.

Note: Must have coilovers to run this kit.

Note: Wheel bearing not included.

Note: If you choose to run the Z32 caliper with the 350Z bearing option, the caliper may require some minor grinding to clear the bearing due to its size.

Note: For custom colors, please list it within the order notes.

Note: Please allow 3-4 weeks of fabrication before the item is sent.

Installation Manual

Installation Manual (350z Hub)
