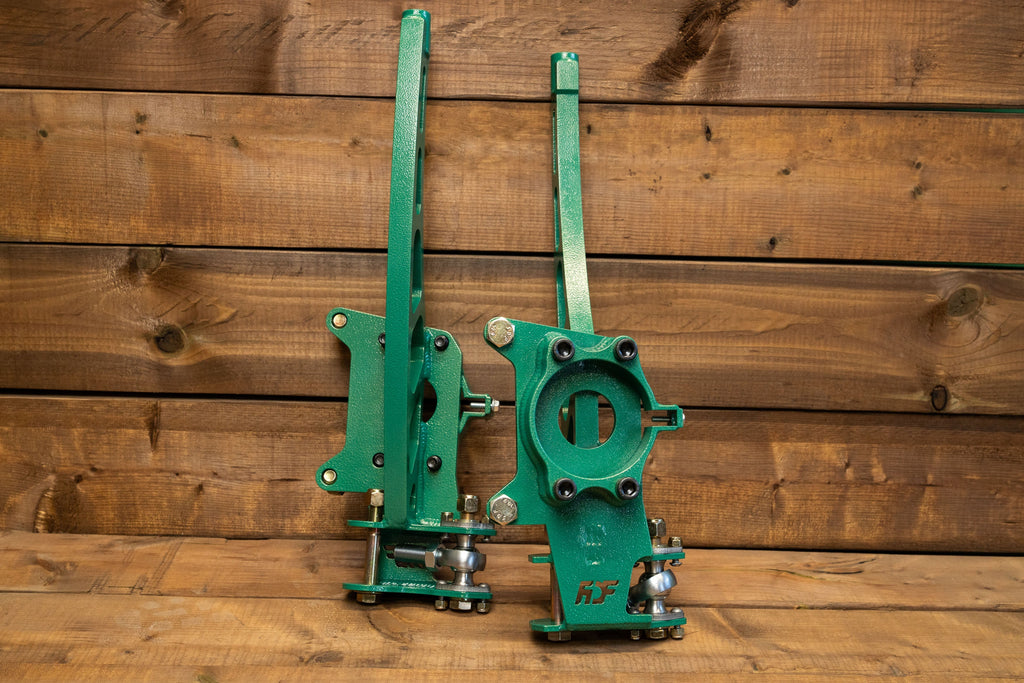

The Nissan 370Z/ Infiniti G37 Mega Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

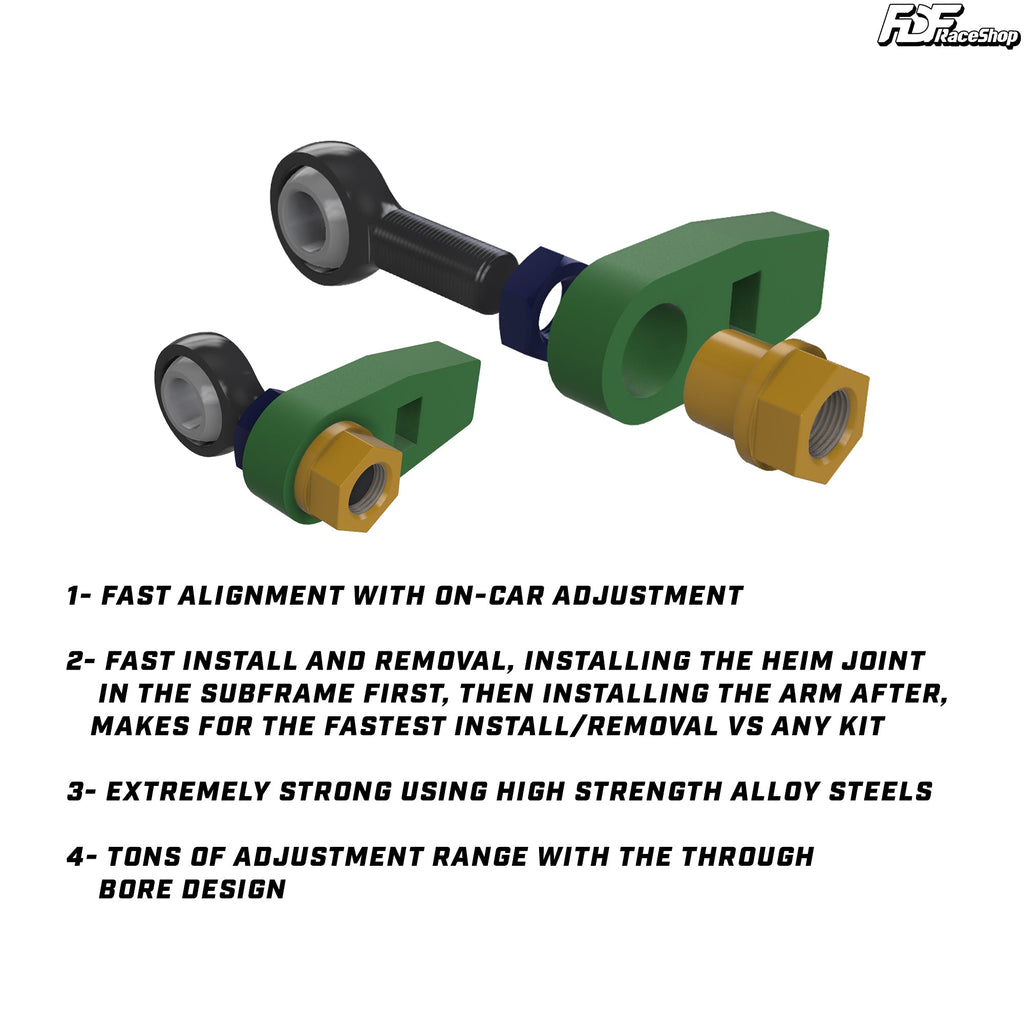

Adjustability: On-car fine-tuning for both camber and caster, a unique feature not found in other kits.
Angle: 70 degrees depending on your steering rack setup.
Ackermann: Adjustable Ackermann.
Roll Center: Optimized handling by adding 40mm of roll center correction.
Bump steer: Minimal bump steer in drift by perfecting tie-rod pickup location.
Caster: Displaced caster built into the knuckle for optimal alignment force.
Camber: Optimized camber ranging from adjustable from -3 to -6.
Track Width: 50-75mm wider per side creating a stable and high clearance front end (Recommend front over fenders 50mm+)
Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
Joints: Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Note: Must Have Coilovers To Run This Kit

Note: Wheel Bearing not included

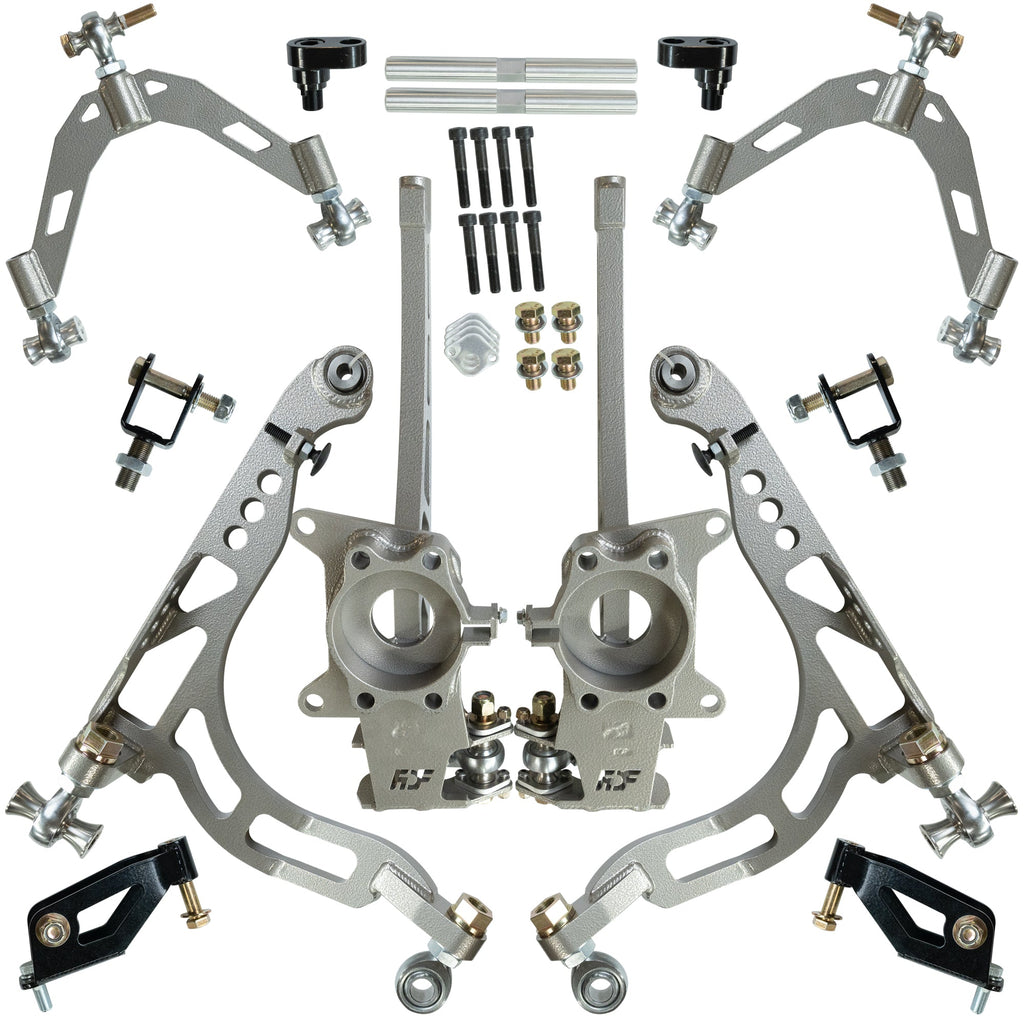

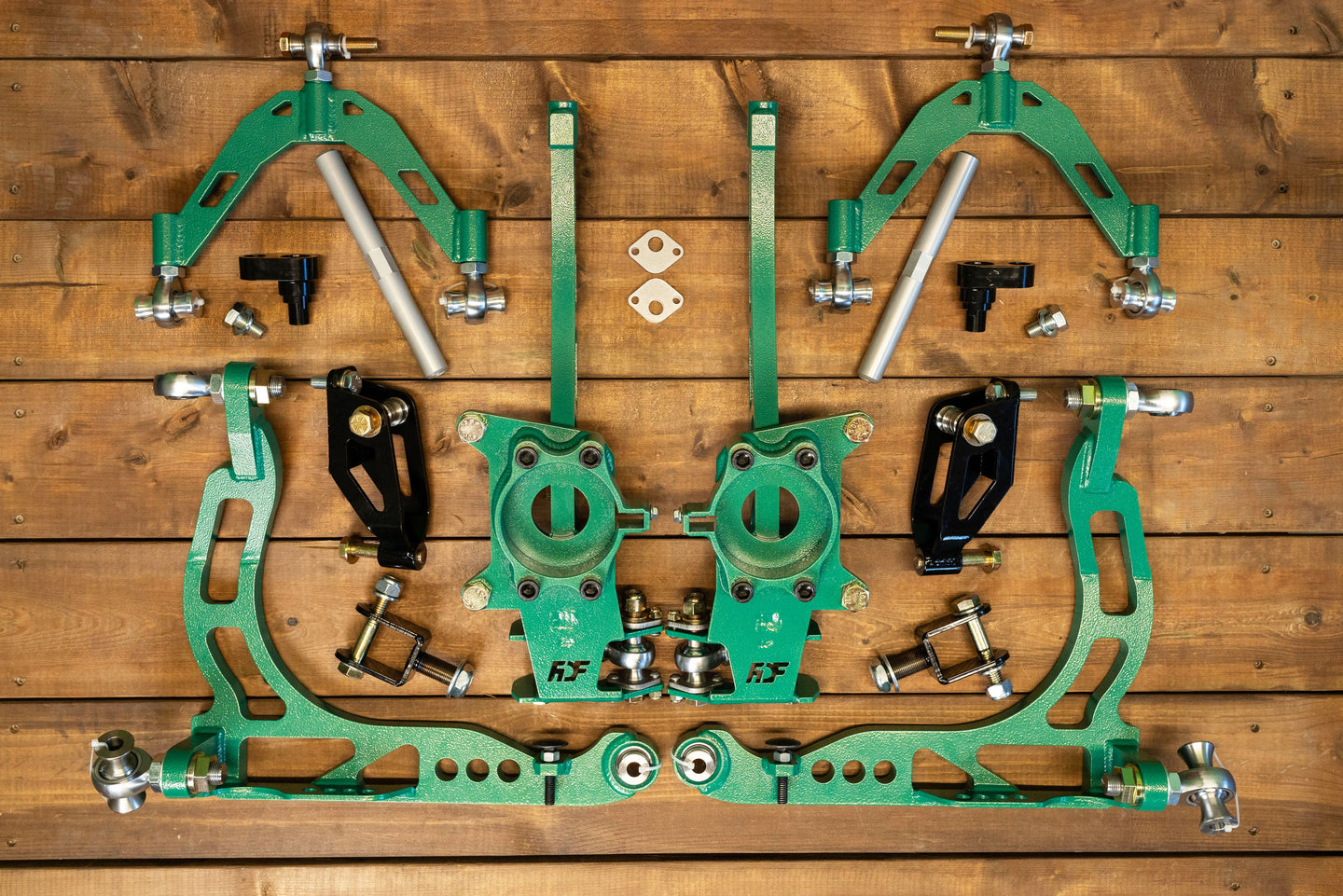

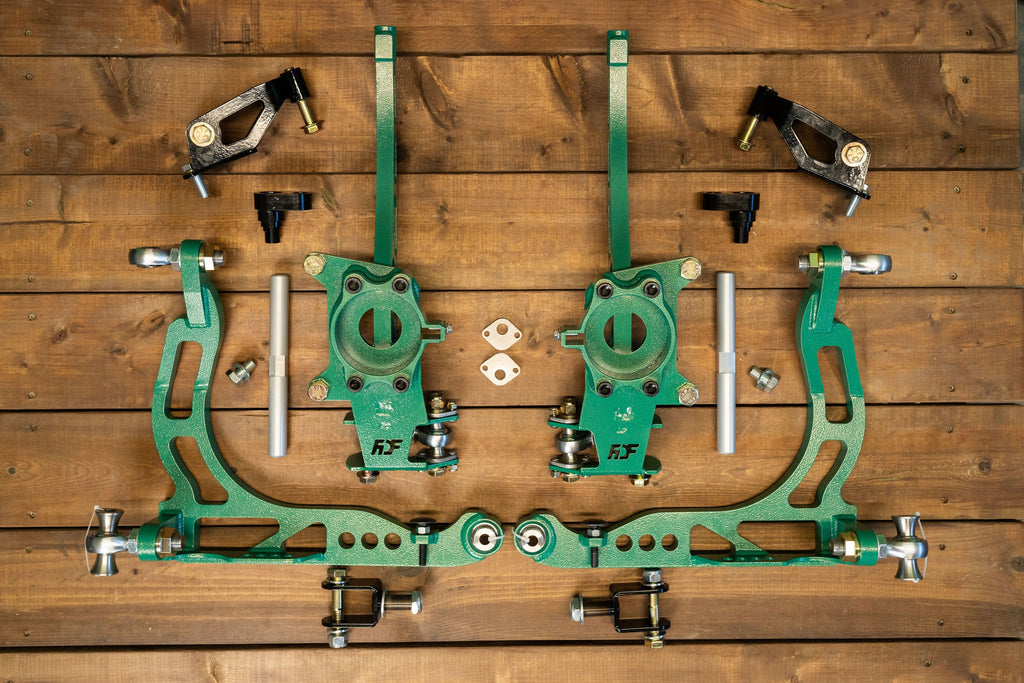

Includes:

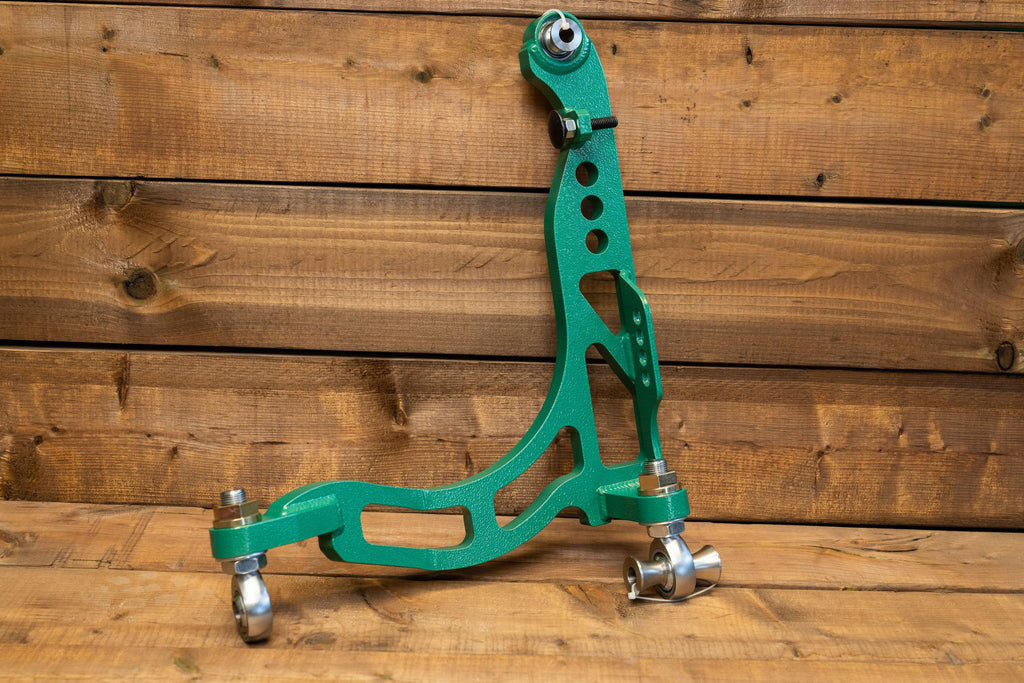

2 lower control arms
2 upper control arms
2 knuckles
Ackermann Plates
2 inner and outer tie-rods
All bearings and hardware required for install
8.5" Tie rods (or 10" with Rack Relocation)

Note: For custom colors, please list it within the order notes.

Note: Please allow 2-3 weeks of fabrication before the item is sent.
