Edelbrock Single Perf Pontiac Semi Finshed Head

Edelbrock Single Perf Pontiac Semi Finshed Head

Regular price $1,317.87 CAD
Regular price Sale price $1,317.87 CAD
Sale Sold out
Shipping calculated at checkout.

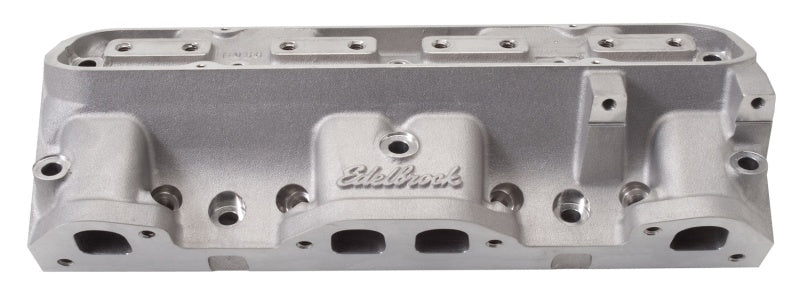

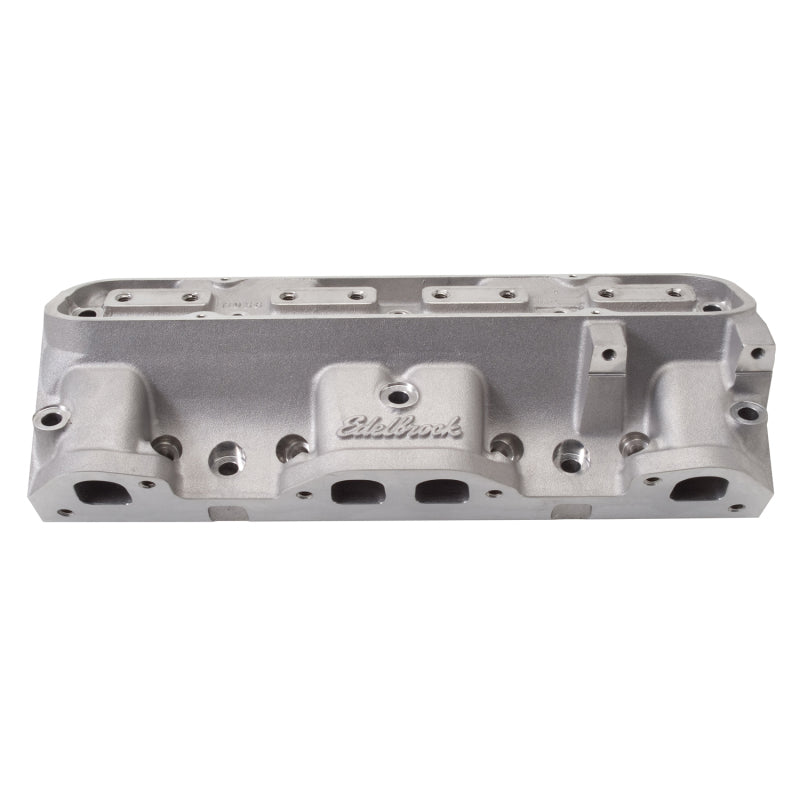

Cylinder Head Specifications:; Combustion chamber volume: 87cc; Intake runner volume: 215cc; Exhaust runner volume: 175cc; Intake valve diameter: 2.11"; Exhaust valve diameter: 1.66"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 14°; Exhaust port location: Stock Ram Air IV; Spark plug fitment: 14mm x 3/4 reach, gasket seat. These cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. Performer heads #60579/#60575 are 50-state emissions legal for 1965-79 vehicles. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with a streetable 9.5:1 compression ratio. Our Performer RPM heads with the 72cc combustion chamber are for higher compression engines. Performer RPM #60509 is semi-machined and must be finished by a professional cylinder head porter. They include valve guides and seats installed with no intake pushrod holes. Performer RPM #60587 is not port matched or bowl blended and is NHRA accepted for Stock & Super Stock. INSTALLATION NOTE: These heads require Ram Air IV (round port) style exhaust manifolds or headers and Edelbrock head bolt kit #8549. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).

This Part Fits:

Year Make Model Submodel
1975 Buick LeSabre Custom
1975 Oldsmobile 98 Luxury
1975 Oldsmobile 98 Regency
1975 Oldsmobile Custom Cruiser Base
1975 Oldsmobile Custom Cruiser Panel
1975 Oldsmobile Delta 88 Base
1975 Oldsmobile Delta 88 Royale
1965-1978 Pontiac Bonneville Base
1976-1978 Pontiac Bonneville Brougham
1965-1970,1978 Pontiac Bonneville Safari
1965-1967 Pontiac Catalina 2+2
1965-1978 Pontiac Catalina Base
1971-1972 Pontiac Catalina Brougham
1965-1978 Pontiac Catalina Safari
1965-1970 Pontiac Catalina Ventura
1967-1970 Pontiac Executive Base
1967-1970 Pontiac Executive Safari
1967-1969 Pontiac Firebird 400
1967-1977 Pontiac Firebird Base
1970-1974,1976 Pontiac Firebird Esprit
1970-1979 Pontiac Firebird Formula
1967 Pontiac Firebird HO
1969-1979 Pontiac Firebird Trans Am
1973-1975 Pontiac Grand Am Base
1975-1977 Pontiac Grand LeMans Base
1975,1977 Pontiac Grand LeMans Safari
1965-1974,1976-1977 Pontiac Grand Prix Base
1975,1977 Pontiac Grand Prix LJ
1975-1977 Pontiac Grand Prix SJ
1971-1978 Pontiac Grand Safari Base
1971-1974 Pontiac Grandville Base
1975 Pontiac Grandville Brougham
1965-1973 Pontiac GTO Base
1970-1971 Pontiac GTO The Judge
1968-1977 Pontiac LeMans Base
1972-1974 Pontiac LeMans Luxury
1969-1970,1973-1975,1977 Pontiac LeMans Safari
1974 Pontiac LeMans Safari Luxury
1970-1977 Pontiac LeMans Sport
1971 Pontiac LeMans T37
1965-1966 Pontiac Star Chief Base
1966 Pontiac Star Chief Executive
1968-1970 Pontiac Tempest Base
1968-1969 Pontiac Tempest Custom
1970 Pontiac Tempest GT
1968-1969 Pontiac Tempest Safari
