DeWitts Radiator 32-1139097E - DeWitts Pro-Series Radiators

DeWitts Radiator 32-1139097E - DeWitts Pro-Series Radiators

Regular price $1,132.00 CAD
Regular price Sale price $1,132.00 CAD
Sale Sold out
Shipping calculated at checkout.

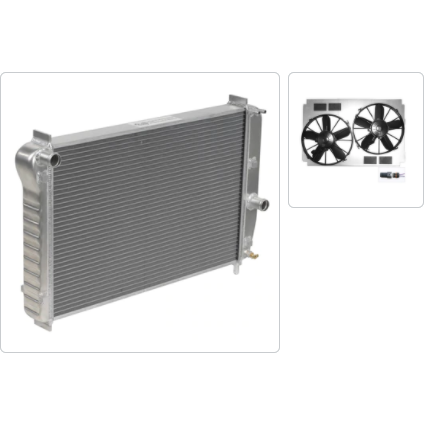

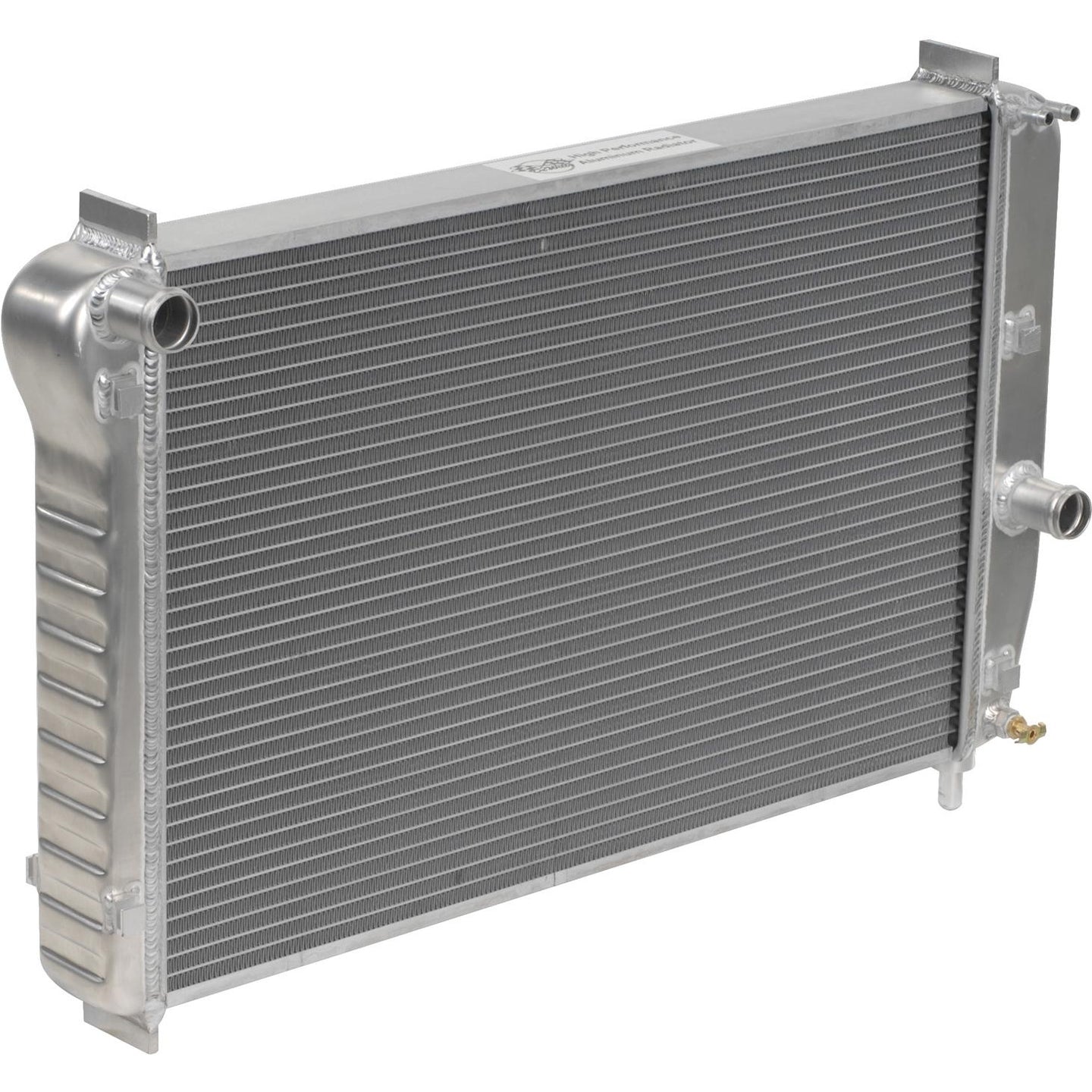

DeWitts Pro-Series Radiators For C5 Corvette (STANDARD HEIGHT)

DeWitts Pro-Series direct-fit aluminum radiators provide a 25 percent increase in cooling performance. They include features like two rows of one-inch wide cooling tubes, press-formed end tanks, serpentine fins, and factory-type upper and lower channels—and they're epoxy-free! Each radiator core is assembled and brazed in a state-of-the-art aluminum brazing furnace. DeWitts Direct Fit is the company's official trademark, and it means your radiator will fit without modifications.

DeWitts Radiator Electric Fan Upgrade Kit Option Details Below

If you're running a single fan on your Corvette's stock radiator, then it's time to upgrade to DeWitt's aluminum electric dual Spal fan kits. These cooling systems are designed to move a massive amount of air when needed—the fan speed increases as temperatures rise. At the programmed upper threshold temperature, the primary fan speed reaches 100 percent and the secondary fan kicks in to help. As the temperature drops down, the secondary fan cycles off, and the primary slows, giving you a constant cooling temperature. You get uncompromised cooling under all driving conditions.

Radiator Material:
Aluminum
Radiator Style:
Crossflow
Transmission Cooler:
No
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Overall Width (in.):
31.000 in.
Overall Height (in.):
17.000 in.
Overall Thickness (in.):
3.250 in.
Row Quantity:
2
Radiator Finish:
Natural
Core Width (in.):
24.750 in.
Core Height (in.):
17.000 in.
Core Thickness (in.):
2.250 in.
Trans Cooler Adapter Fittings Included:
No
Radiator Inlet Size:
1.250 in.
Radiator Outlet Size:
1.250 in.
Tube Size:
1 in.
Fan Included:
No
Radiator Cap Included:
No
------------------------

DeWitts Radiator Electric Fan Upgrade Kit Option

If you're running a single fan on your Corvette's stock radiator, then it's time to upgrade to DeWitt's aluminum electric dual Spal fan kits. These cooling systems are designed to move a massive amount of air when needed—the fan speed increases as temperatures rise. At the programmed upper threshold temperature, the primary fan speed reaches 100 percent and the secondary fan kicks in to help. As the temperature drops down, the secondary fan cycles off, and the primary slows, giving you a constant cooling temperature. You get uncompromised cooling under all driving conditions.

Puller:
Yes
Pusher:
No
Fan Diameter (in.):
12.000 in.
Fan CFM Range:
3,200-3,299
Maximum Fan CFM:
3,200 cfm
Fan Quantity:
Dual
Height (in.):
17.000 in.
Width (in.):
28.000 in.
Thickness (in.):
4.250 in.
Number of Blades:
5 blades
Blade Material:
Plastic
Blade Color:
Black
Shroud Color:
Natural
Shroud Material:
Aluminum
Amp Draw:
17.00 amps
Air Conditioning Relay Included:
No
Mounting Brackets Included:
No
Mounting Hardware Included:
No
